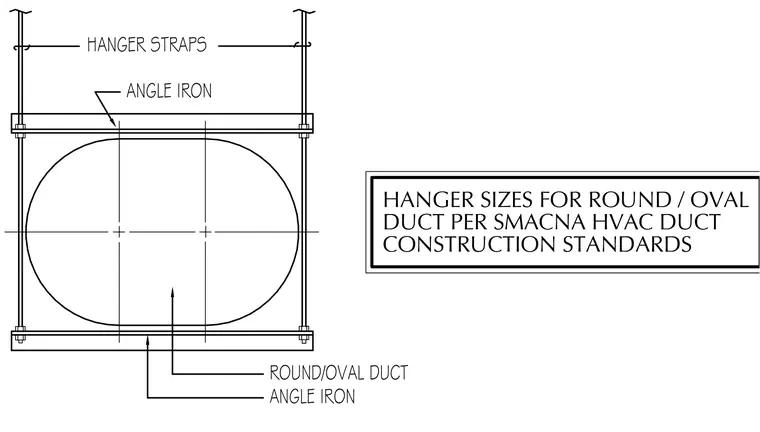

Round or oval duct is supported by bottom and top angle iron members forming a trapeze assembly, hung from overhead via vertical hanger straps fastened with nuts and bolts. Sizing and construction conform to SMACNA HVAC duct construction standards.
ANGLE IRON ROUND/OVAL DUCT ANGLE IRON HANGER STRAPS e^kdbo=pfwbp=clo=olrka=L=ls^i ar`q=mbo=pj^`k^=es^`=ar`q `lkpqor`qflk=pq^ka^oap
