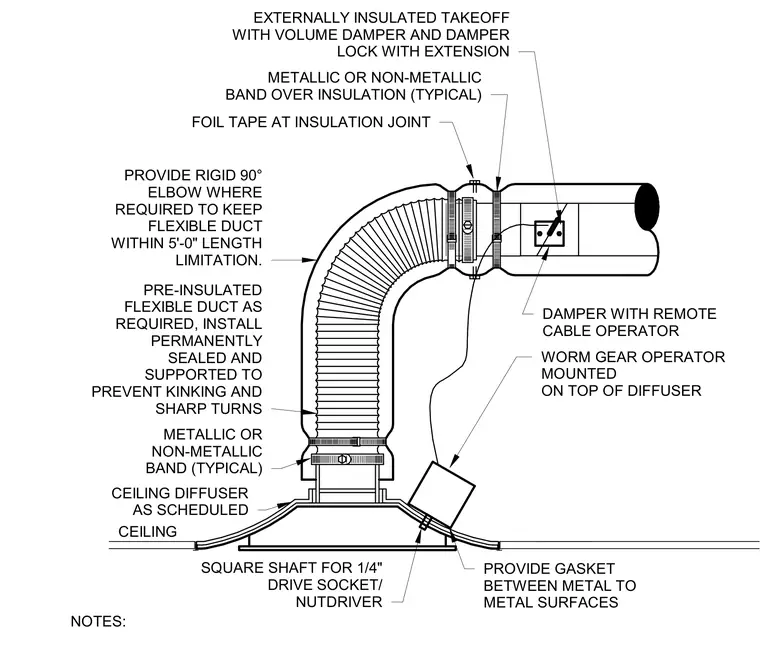

Pre-insulated flexible duct connects to an externally insulated takeoff and terminates at a ceiling diffuser. Metallic or non-metallic bands secure the insulation over the duct joints, supplemented by foil tape at the insulation seams. A volume damper with a remote cable operator is installed in the takeoff, featuring a worm gear operator mounted on top of the diffuser and a square shaft for a one-quarter inch drive socket or nutdriver. A gasket is provided between metal-to-metal surfaces at the diffuser connection. The flexible duct is installed permanently sealed and supported to prevent kinking, with a rigid ninety-degree elbow used where required to keep the run within the five-foot length limitation.
CEILING CEILING DIFFUSER AS SCHEDULED NOTES: EXTERNALLY INSULATED TAKEOFF WITH VOLUME DAMPER AND DAMPER LOCK WITH EXTENSION METALLIC OR NON-METALLIC BAND (TYPICAL) DAMPER WITH REMOTE CABLE OPERATOR WORM GEAR OPERATOR MOUNTED ON TOP OF DIFFUSER SQUARE SHAFT FOR 1/4" DRIVE SOCKET/ NUTDRIVER PROVIDE GASKET BETWEEN METAL TO METAL SURFACES FOIL TAPE AT INSULATION JOINT PRE-INSULATED FLEXIBLE DUCT AS REQUIRED, INSTALL PERMANENTLY SEALED AND SUPPORTED TO PREVENT KINKING AND SHARP TURNS PROVIDE RIGID 90° ELBOW WHERE REQUIRED TO KEEP FLEXIBLE DUCT WITHIN 5'-0" LENGTH LIMITATION. METALLIC OR NON-METALLIC BAND OVER INSULATION (TYPICAL)
