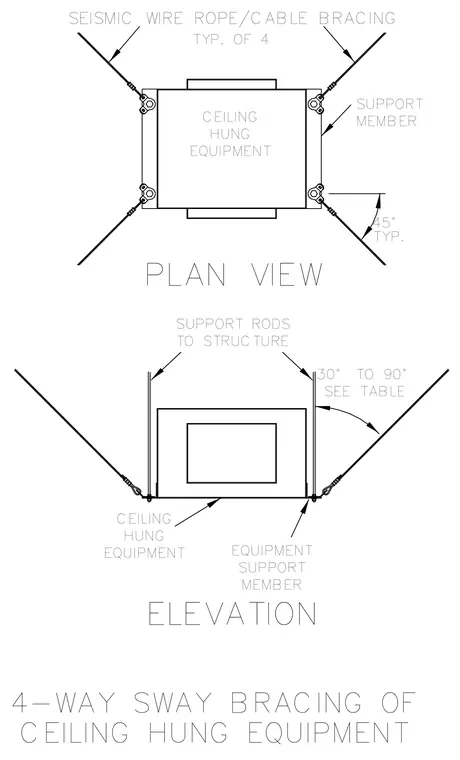

Ceiling-hung equipment is suspended from the overhead structure using vertical support rods attached to underlying support members. Four-way seismic wire rope or cable bracing extends outward from the four corners of the equipment frame to provide lateral restraint. The wire rope sway bracing is installed at a typical forty-five-degree horizontal angle in plan view. The vertical angle of the seismic bracing ranges from thirty to ninety degrees relative to the structure as specified in the engineering table.
EQUIPMENT SEISMIC WIRE ROPE/CABLE BRACING 4-WAY SWAY BRACING OF CEILING HUNG EQUIPMENT PLAN VIEW EQUIPMENT ELEVATION SUPPORT MEMBER HUNG CEILING TO STRUCTURE SUPPORT RODS SEE TABLE 30° TO 90° EQUIPMENT TYP. OF 4 CEILING HUNG TYP. 45° MEMBER SUPPORT
