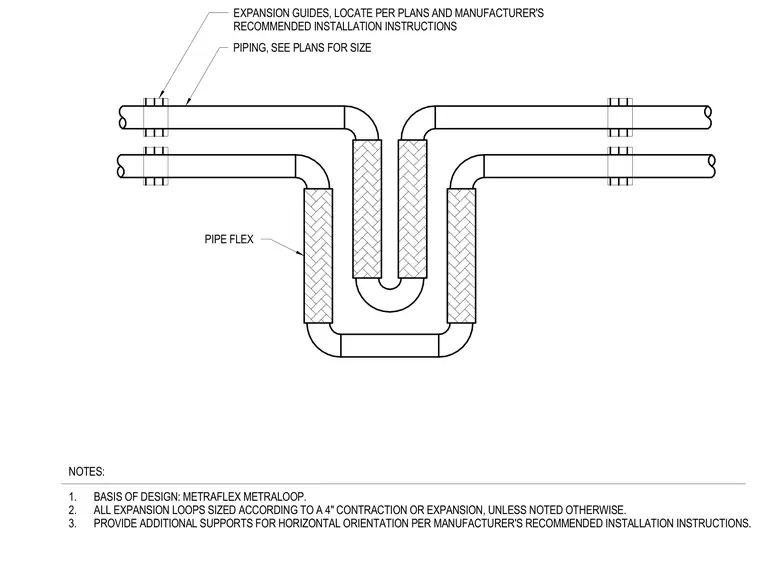

A flexible pipe expansion loop assembly integrates rigid piping with braided flexible pipe sections to absorb thermal expansion and contraction. The configuration includes expansion guides positioned along the pipeline per manufacturer requirements to direct pipe movement into the loop. Expansion loops are designed to accommodate a four-inch contraction or expansion unless noted otherwise. Horizontal orientations require additional supports installed in accordance with manufacturer recommendations. The basis of design for this assembly is the Metraflex Metraloop.
EXPANSION GUIDES, LOCATE PER PLANS AND MANUFACTURER'S RECOMMENDED INSTALLATION INSTRUCTIONS PIPING, SEE PLANS FOR SIZE 1. BASIS OF DESIGN: METRAFLEX METRALOOP. 2. ALL EXPANSION LOOPS SIZED ACCORDING TO A 4" CONTRACTION OR EXPANSION, UNLESS NOTED OTHERWISE. 3. PROVIDE ADDITIONAL SUPPORTS FOR HORIZONTAL ORIENTATION PER MANUFACTURER'S RECOMMENDED INSTALLATION INSTRUCTIONS. PIPE FLEX NOTES:
