Typical VAV Air Terminal Unit Assembly

Materials

Elements

About this detail

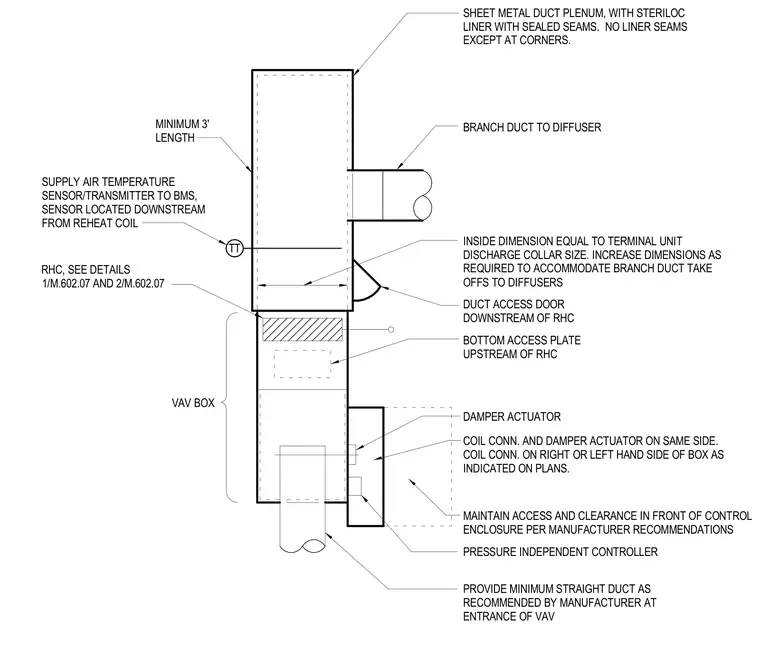

A variable air volume terminal unit connects to an incoming duct with a minimum straight length as recommended by the manufacturer. The assembly incorporates a pressure-independent controller, damper actuator, and coil connections located on the same side of the box. A reheat coil sits upstream of a duct access door and a supply air temperature sensor transmitter linked to the building management system. The discharge connects to a sheet metal duct plenum lined with Steriloc liner and sealed seams. Branch ducts to diffusers tie into the plenum, with dimensions increased as required to accommodate take-offs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
