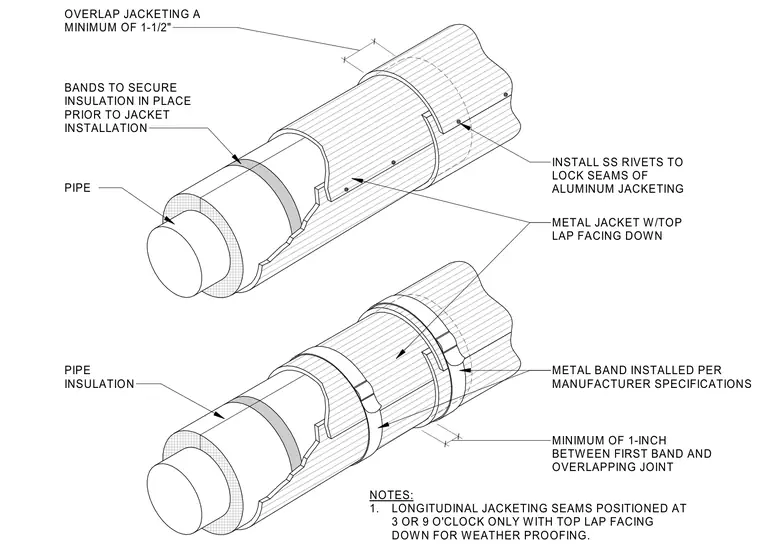

Insulated exterior piping features a protective aluminum metal jacket secured with stainless steel rivets and metal bands. Longitudinal jacketing seams are positioned at the 3 or 9 o'clock position with the top lap facing downward for weather proofing. Metal bands secure the pipe insulation in place prior to jacket installation, maintaining a minimum of 1-inch clearance between the first band and the overlapping joint. The aluminum jacketing overlaps a minimum of 1-1/2 inches with the top lap facing down.
INSTALL SS RIVETS TO LOCK SEAMS OF ALUMINUM JACKETING METAL JACKET W/TOP LAP FACING DOWN MINIMUM OF 1-INCH BETWEEN FIRST BAND AND OVERLAPPING JOINT PIPE INSULATION NOTES: 1. LONGITUDINAL JACKETING SEAMS POSITIONED AT 3 OR 9 O'CLOCK ONLY WITH TOP LAP FACING DOWN FOR WEATHER PROOFING. PIPE METAL BAND INSTALLED PER MANUFACTURER SPECIFICATIONS BANDS TO SECURE INSULATION IN PLACE PRIOR TO JACKET INSTALLATION OVERLAP JACKETING A MINIMUM OF 1-1/2"
