Base-Mounted Pump Piping Connections and Equipment Pad

Materials

Elements

About this detail

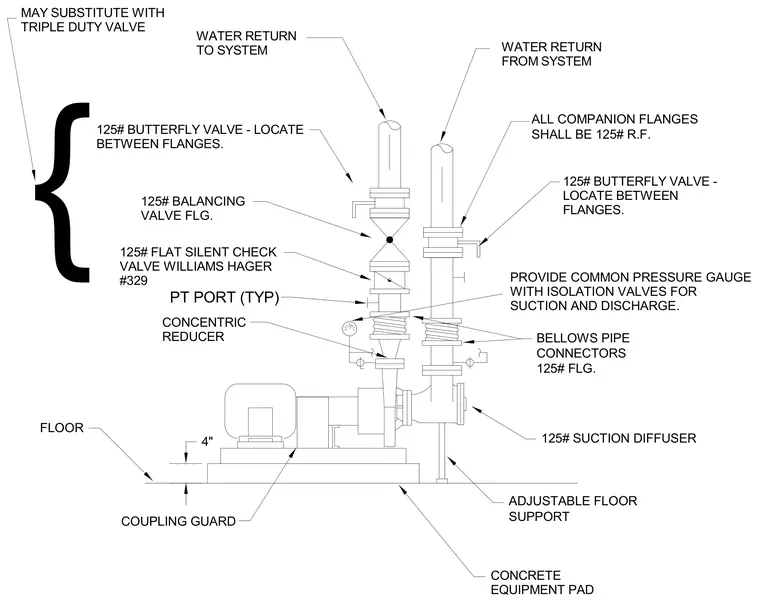

A base-mounted pump sits atop a concrete equipment pad on the floor with a coupling guard over the drive connection. The suction side incorporates a four-inch suction diffuser, a bellows pipe connector with one-hundred-twenty-five-pound flanged coupling, a pressure gauge with isolation valves, and a concentric reducer. The discharge side includes an adjustable floor support, a bellows pipe connector, pressure-temperature ports, a one-hundred-twenty-five-pound flat silent check valve, a balancing valve, and a butterfly valve located between flanges. All companion flanges must be one-hundred-twenty-five-pound raised-face flanges. A triple duty valve may be substituted for the butterfly and balancing valve combination.
