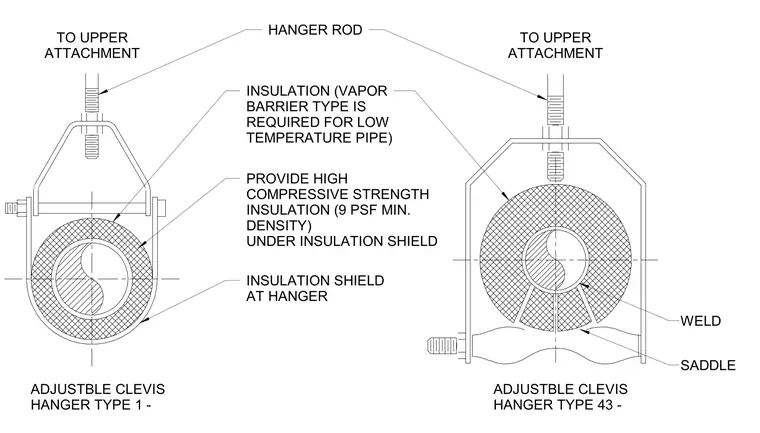

The insulated pipe is supported by an insulation shield at the hanger with a saddle and weld. High compressive strength insulation with a nine pounds per square foot minimum density is positioned directly under the insulation shield. A vapor barrier type insulation is required for low temperature pipe configurations. The entire assembly is suspended by a hanger rod connected to an upper attachment, utilizing either an adjustable clevis hanger type one or type forty-three.
TO UPPER ATTACHMENT TO UPPER ATTACHMENT SADDLE WELD PROVIDE HIGH COMPRESSIVE STRENGTH INSULATION (9 PSF MIN. DENSITY) UNDER INSULATION SHIELD HANGER ROD INSULATION (VAPOR BARRIER TYPE IS REQUIRED FOR LOW TEMPERATURE PIPE) INSULATION SHIELD AT HANGER ADJUSTBLE CLEVIS HANGER TYPE 1 - ADJUSTBLE CLEVIS HANGER TYPE 43 -
