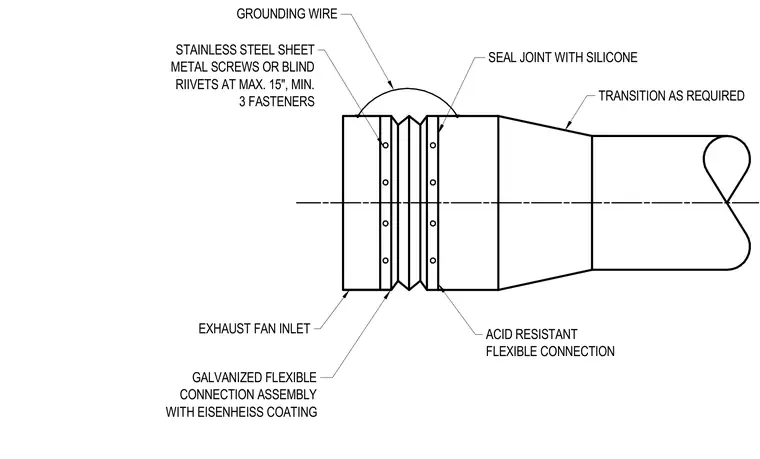

A galvanized flexible connection assembly featuring Eisenheiss coating and an acid-resistant flexible connection links the exhaust fan inlet to ductwork through a transition as required. The joints are sealed with silicone and secured using stainless steel sheet metal screws or blind rivets spaced at a maximum of fifteen inches with a minimum of three fasteners per connection. A grounding wire bridges across the flexible connection.
TRANSITION AS REQUIRED SEAL JOINT WITH SILICONE STAINLESS STEEL SHEET METAL SCREWS OR BLIND RIIVETS AT MAX. 15", MIN. 3 FASTENERS GROUNDING WIRE EXHAUST FAN INLET GALVANIZED FLEXIBLE CONNECTION ASSEMBLY WITH EISENHEISS COATING ACID RESISTANT FLEXIBLE CONNECTION
