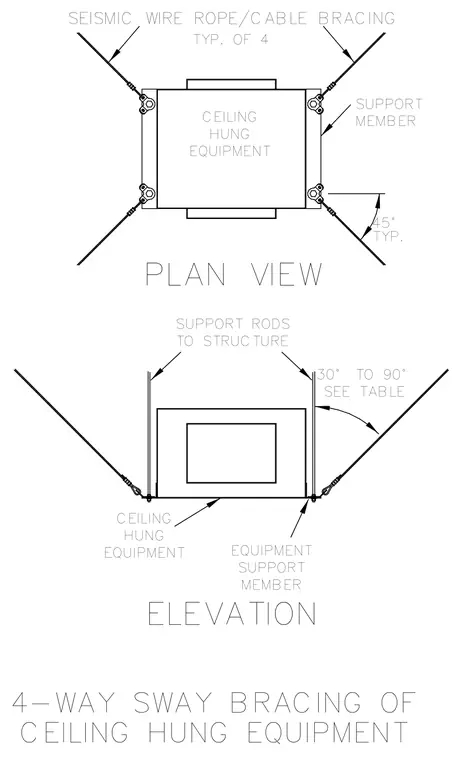

This assembly provides four-way seismic sway bracing for ceiling-hung equipment using wire rope or cable. The equipment is suspended from the structure above via support rods attached to a support member. Four seismic wire rope or cable braces are anchored to the support member at each corner. These braces are installed at a typical 45-degree angle in plan view and at an angle between 30 and 90 degrees in elevation, as specified in the project table.
Text on the drawing
EQUIPMENT SEISMIC WIRE ROPE/CABLE BRACING 4-WAY SWAY BRACING OF CEILING HUNG EQUIPMENT PLAN VIEW EQUIPMENT ELEVATION SUPPORT MEMBER HUNG CEILING TO STRUCTURE SUPPORT RODS SEE TABLE 30° TO 90° EQUIPMENT TYP. OF 4 CEILING HUNG TYP. 45° MEMBER SUPPORT
