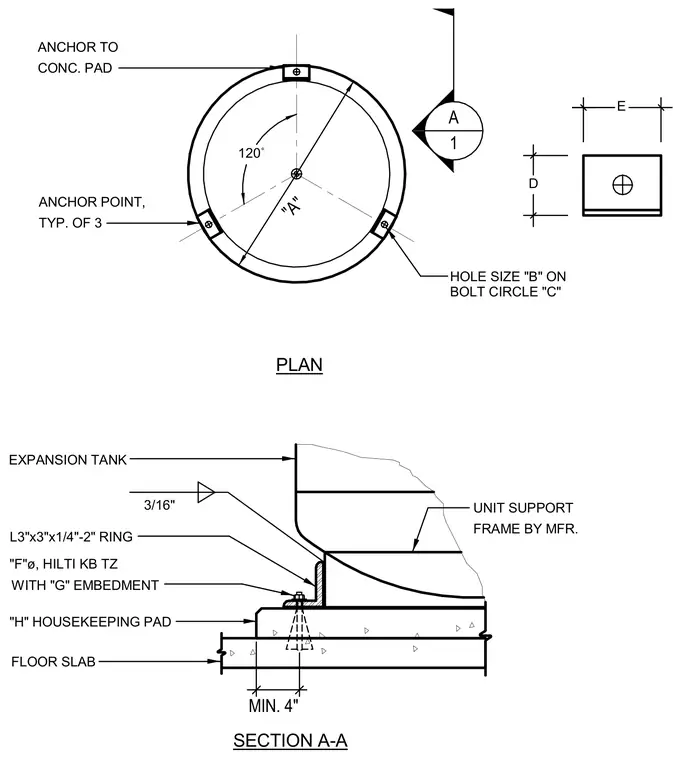

An expansion tank rests on a housekeeping pad supported by the floor slab. The tank is secured by an angle ring made of a L3"x3"x1/4"-2" profile, welded to the unit support frame by manufacturer with a 3/16" fillet weld. The angle ring is anchored to the concrete pad using Hilti KB-TZ expansion anchors spaced at one hundred twenty degrees around a bolt circle. A minimum four-inch edge distance is maintained for the anchors.
HOLE SIZE "B" ON BOLT CIRCLE "C" SECTION A-A MIN. 4" PLAN "A" A 1 UNIT SUPPORT FRAME BY MFR. FLOOR SLAB EXPANSION TANK "F"ø, HILTI KB TZ WITH "G" EMBEDMENT "H" HOUSEKEEPING PAD L3"x3"x1/4"-2" RING 3/16" ANCHOR POINT, TYP. OF 3 CONC. PAD ANCHOR TO D E 120˚
