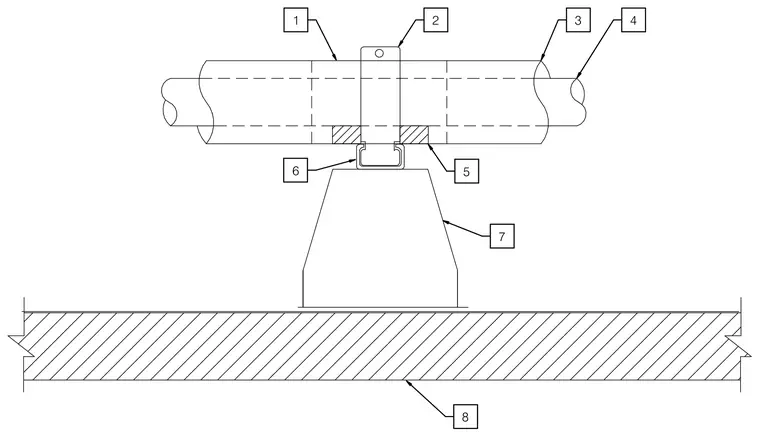

An insulated pipe is supported by a pipe roller resting within a pipe insulation protection shield. The assembly is secured by a pipe strap connected to a metal framing strut. The strut rests atop a rooftop support base or equipment curb secured over the roof deck.
