Accessibility Reach Ranges for Electrical Outlets and Switches

Elements

About this detail

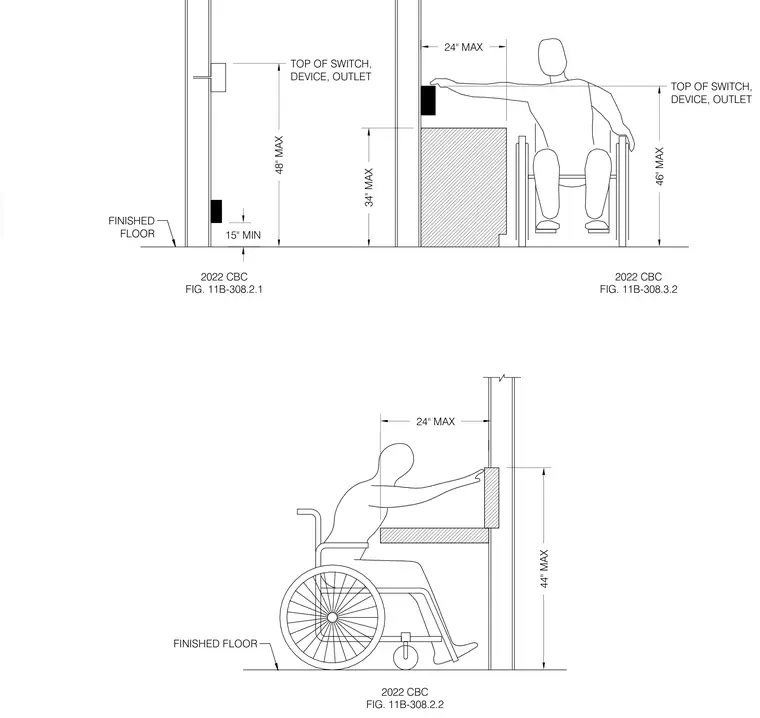

Accessibility mounting heights establish maximum and minimum vertical dimensions above the finished floor for electrical switches, outlets, and communication devices based on 2022 California Building Code requirements. Side reach and forward reach limits are detailed for unobstructed and obstructed approaches by wheelchair users. Heights are dimensioned with a 15-inch minimum and 48-inch maximum for standard reaches, alongside specific heights for counters and side reaches.
