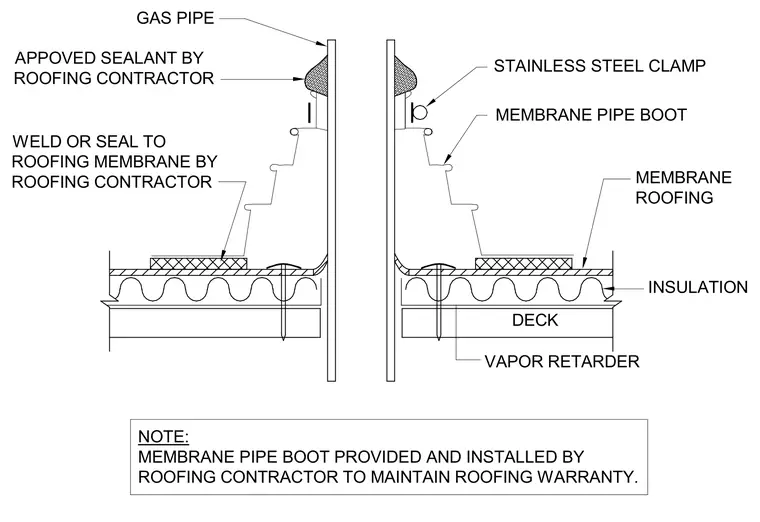

A gas pipe penetrates a built-up roof assembly consisting of a structural deck, vapor retarder, roof insulation, and membrane roofing. A flexible membrane pipe boot fits over the gas pipe and is welded or sealed directly to the roofing membrane by the roofing contractor. A stainless steel clamp secures the top of the boot to the pipe, supplemented by an approved sealant bead. A specific note requires the membrane pipe boot to be provided and installed by the roofing contractor to maintain the roofing warranty.
DECK VAPOR RETARDER GAS PIPE APPOVED SEALANT BY ROOFING CONTRACTOR MEMBRANE PIPE BOOT STAINLESS STEEL CLAMP MEMBRANE ROOFING INSULATION WELD OR SEAL TO ROOFING MEMBRANE BY ROOFING CONTRACTOR NOTE: MEMBRANE PIPE BOOT PROVIDED AND INSTALLED BY ROOFING CONTRACTOR TO MAINTAIN ROOFING WARRANTY.
