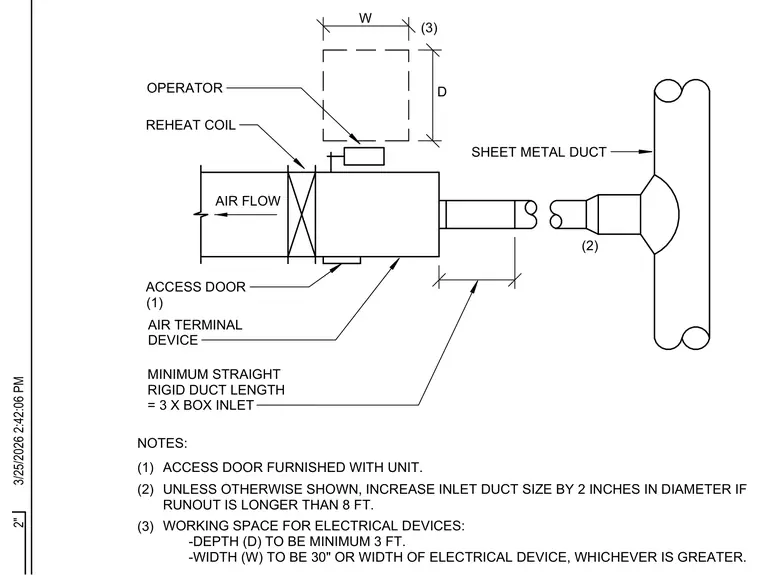

An air terminal device connects to a sheet metal duct run with an integrated reheat coil and an operator. The access door is furnished with the unit. The minimum straight rigid duct length must equal three times the box inlet dimension. If the inlet runout exceeds eight feet, the inlet duct size must increase by two inches in diameter. Electrical devices require a minimum working space depth of three feet and a width of thirty inches or the width of the electrical device, whichever is greater.
SHEET METAL DUCT REHEAT COIL ACCESS DOOR (1) OPERATOR (2) NOTES: AIR TERMINAL DEVICE MINIMUM STRAIGHT RIGID DUCT LENGTH = 3 X BOX INLET AIR FLOW D W (3) (1) ACCESS DOOR FURNISHED WITH UNIT. (2) UNLESS OTHERWISE SHOWN, INCREASE INLET DUCT SIZE BY 2 INCHES IN DIAMETER IF RUNOUT IS LONGER THAN 8 FT. (3) WORKING SPACE FOR ELECTRICAL DEVICES: -DEPTH (D) TO BE MINIMUM 3 FT. -WIDTH (W) TO BE 30" OR WIDTH OF ELECTRICAL DEVICE, WHICHEVER IS GREATER. 2" 3/25/2026 2:42:06 PM
