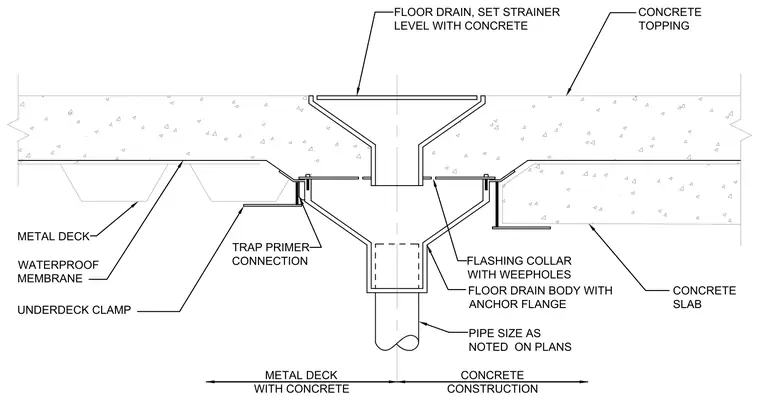

The floor drain body features an anchor flange and a flashing collar with weepholes, set level with the concrete topping over a concrete slab and metal deck construction. A waterproof membrane runs beneath the concrete topping and interfaces with the flashing collar. An underdeck clamp secures the drain assembly from below, and a trap primer connection is provided. The drain connects to a pipe sized as noted on the plans.
FLOOR DRAIN, SET STRAINER LEVEL WITH CONCRETE CONCRETE TOPPING CONCRETE SLAB FLOOR DRAIN BODY WITH ANCHOR FLANGE FLASHING COLLAR WITH WEEPHOLES PIPE SIZE AS NOTED ON PLANS WATERPROOF MEMBRANE METAL DECK METAL DECK WITH CONCRETE CONCRETE CONSTRUCTION TRAP PRIMER CONNECTION UNDERDECK CLAMP
