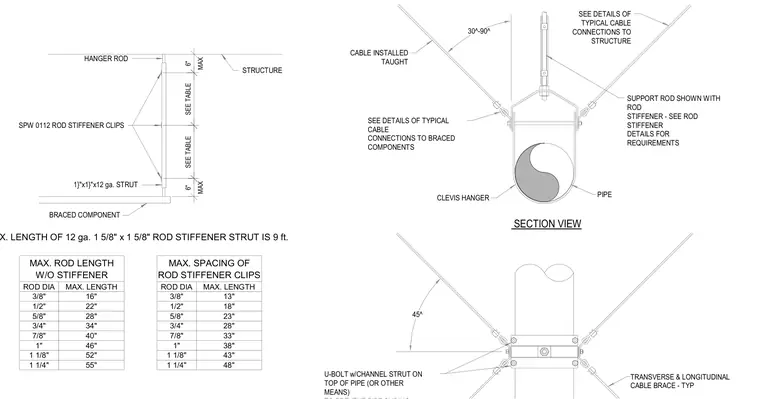

Transverse and longitudinal 4-way cable bracing for suspended pipe hangers supported by hanger rods from the building structure. The assembly includes a pipe clevis hanger, a U-bolt with a channel strut on top of the pipe, and taut installed cables positioned at 30 to 90 degree angles. Rod stiffener clips and a 1-5/8 inch by 1-5/8 inch 12 gauge strut are provided for the support rod based on rod diameter length limitations outlined in the accompanying tables. Maximum rod lengths without stiffeners range from 16 inches for 3/8 inch diameter rods up to 55 inches for 1-1/4 inch diameter rods.
MAX. ROD LENGTH W/O STIFFENER ROD DIA MAX. LENGTH 3/8" 16" 1/2" 22" 5/8" 28" 3/4" 34" 7/8" 40" 1" 46" 1 1/8" 52" 1 1/4" 55" MAX. SPACING OF ROD STIFFENER CLIPS ROD DIA MAX. LENGTH 3/8" 13" 1/2" 18" 5/8" 23" 3/4" 28" 7/8" 33" 1" 38" 1 1/8" 43" 1 1/4" 48" MAX. LENGTH OF 12 ga. 1 5/8" x 1 5/8" ROD STIFFENER STRUT IS 9 ft. 6" SEE TABLE SEE TABLE 6" MAX MAX STRUCTURE HANGER ROD BRACED COMPONENT 1}"x1}"x12 ga. STRUT SPW 0112 ROD STIFFENER CLIPS SECTION VIEW PIPE CLEVIS HANGER CABLE INSTALLED TAUGHT SEE DETAILS OF TYPICAL CABLE CONNECTIONS TO STRUCTURE SUPPORT ROD SHOWN WITH ROD STIFFENER - SEE ROD STIFFENER DETAILS FOR REQUIREMENTS TRANSVERSE & LONGITUDINAL CABLE BRACE - TYP U-BOLT w/CHANNEL STRUT ON TOP OF PIPE (OR OTHER MEANS) 45^ SEE DETAILS OF TYPICAL CABLE CONNECTIONS TO BRACED COMPONENTS 30^-90^
