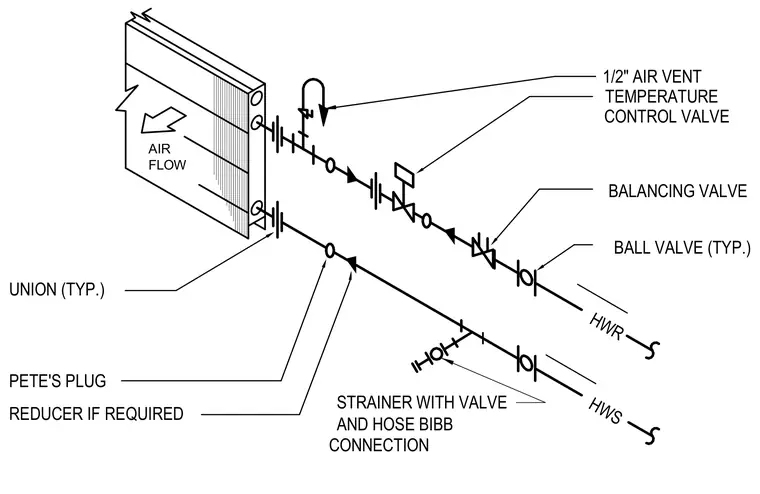

Hot water supply and return piping connects to the reheat coil via typical unions and reducers as required. The supply line includes a strainer with a valve and hose bibb connection, ball valves, a balancing valve, and a temperature control valve. A Pete's plug is installed for temperature and pressure measurement. The return line includes a half-inch air vent positioned at the high point of the piping arrangement.
AIR FLOW HWS HWR UNION (TYP.) PETE'S PLUG REDUCER IF REQUIRED CONNECTION STRAINER WITH VALVE AND HOSE BIBB CONTROL VALVE BALANCING VALVE BALL VALVE (TYP.) TEMPERATURE 1/2" AIR VENT
