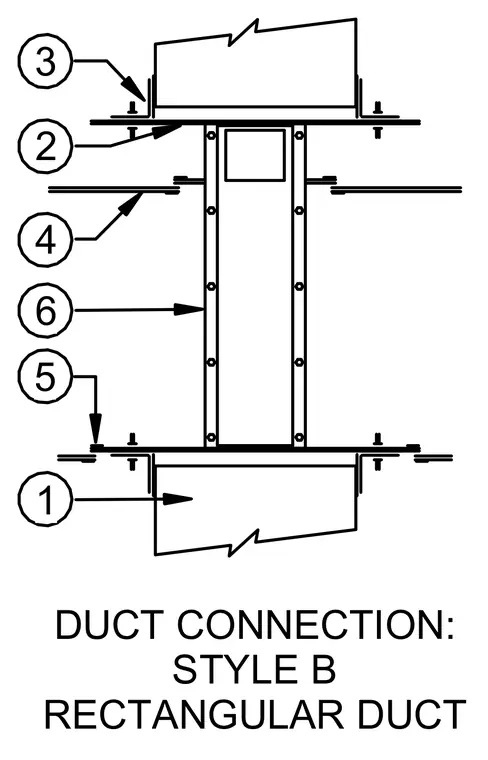

A Style B rectangular duct connection features flanged joints and mechanical fasteners linking the duct sections. Gaskets and flanges seal the mating duct ends together to maintain airtight distribution through the mechanical system. Fasteners secure the connection along the perimeter angles.
