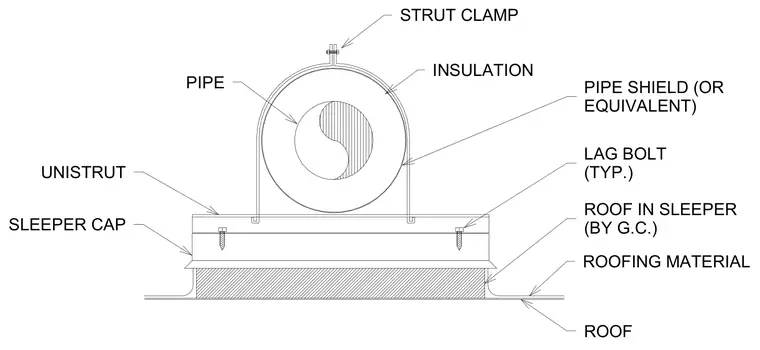

An insulated pipe rests on a protective pipe shield and is secured by a strut clamp. The clamp fastens into a Unistrut channel, which is anchored to a sleeper cap with typical lag bolts. The sleeper is installed over roofing material on the roof deck by the general contractor.
STRUT CLAMP INSULATION PIPE UNISTRUT SLEEPER CAP ROOF PIPE SHIELD (OR EQUIVALENT) LAG BOLT (TYP.) ROOF IN SLEEPER (BY G.C.) ROOFING MATERIAL
