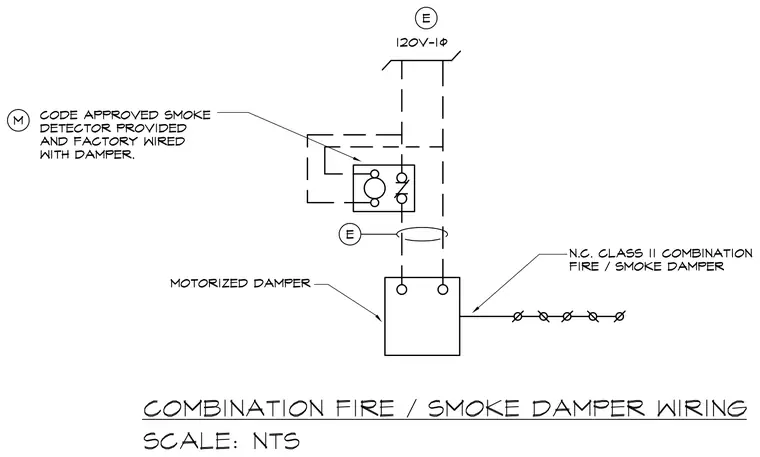

This drawing outlines the electrical wiring connections for a normally closed Class II combination fire and smoke damper. A 120-volt single-phase power supply connects to the unit through a code-approved smoke detector that is provided and factory-wired with the motorized damper.
