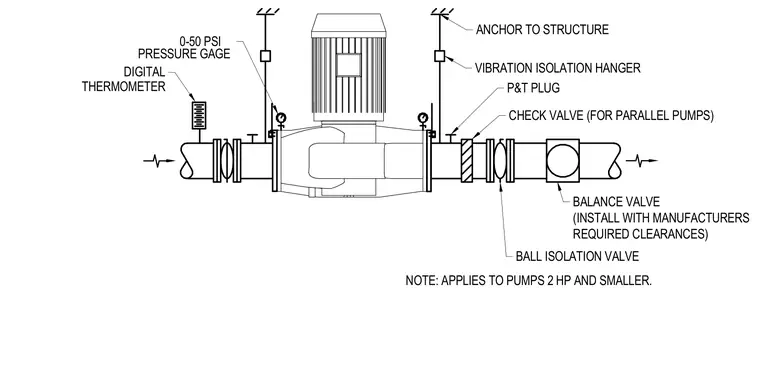

Suspended in-line pump installation supported from the building structure via vibration isolation hangers and anchors. The piping assembly incorporates digital thermometers, 0-50 PSI pressure gauges, pressure and temperature plugs, ball isolation valves, a check valve for parallel pump configurations, and a balance valve installed with manufacturer required clearances. This configuration applies to pumps 2 horsepower and smaller.
DIGITAL THERMOMETER BALL ISOLATION VALVE P&T PLUG VIBRATION ISOLATION HANGER ANCHOR TO STRUCTURE NOTE: APPLIES TO PUMPS 2 HP AND SMALLER. 0-50 PSI PRESSURE GAGE CHECK VALVE (FOR PARALLEL PUMPS) BALANCE VALVE (INSTALL WITH MANUFACTURERS REQUIRED CLEARANCES)
