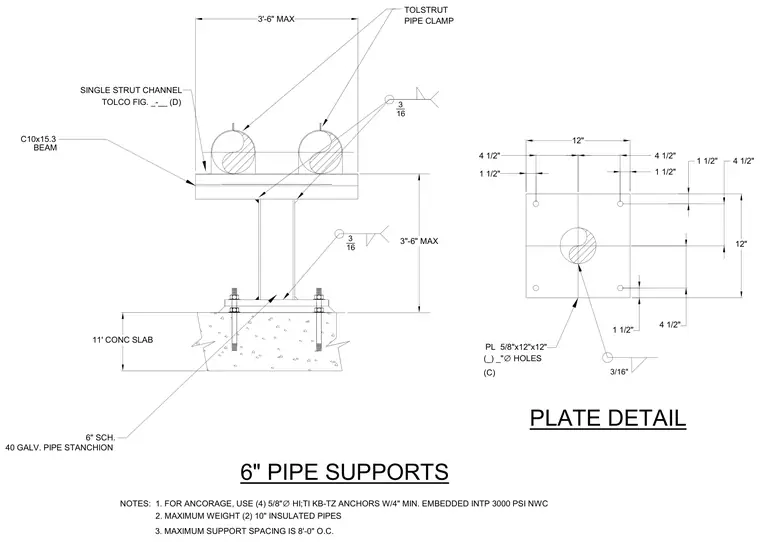

A six-inch schedule forty galvanized pipe stanchion supports a C10x15.3 steel channel beam topped with strut channels and pipe clamps for insulated pipes. The stanchion is welded with three-sixteenths inch fillet welds to a five-eighths by twelve by twelve inch base plate. The base plate is anchored to an eleven-inch concrete slab using four five-eighths inch diameter Hilti KB-TZ expansion anchors with a four-inch minimum embedment into three thousand PSI normal weight concrete. A separate plan view details the base plate dimensions, bolt hole locations, and stanchion weld placement.
3'-6" MAX 11' CONC SLAB 3"-6" MAX 12" 12" 40 GALV. PIPE STANCHION 6" SCH. PLATE DETAIL 3 __ 16 6" PIPE SUPPORTS TOLSTRUT PIPE CLAMP NOTES: 1. FOR ANCORAGE, USE (4) 5/8" ∅ HI;TI KB-TZ ANCHORS W/4" MIN. EMBEDDED INTP 3000 PSI NWC 3/16" PL 5/8"x12"x12" (_) _" ∅ HOLES (C) SINGLE STRUT CHANNEL TOLCO FIG. _-__ (D) C10x15.3 BEAM 3 __ 16 2. MAXIMUM WEIGHT (2) 10" INSULATED PIPES 3. MAXIMUM SUPPORT SPACING IS 8'-0" O.C. 4 1/2" 1 1/2" 4 1/2" 1 1/2" 1 1/2" 4 1/2" 4 1/2" 1 1/2"
