Large Inline Pump Connection and Equipment Assembly

Materials

Concrete

Elements

Floors / Slabs Insulation Drainage Connections / Plates

Connections

Bolted Connection

About this detail

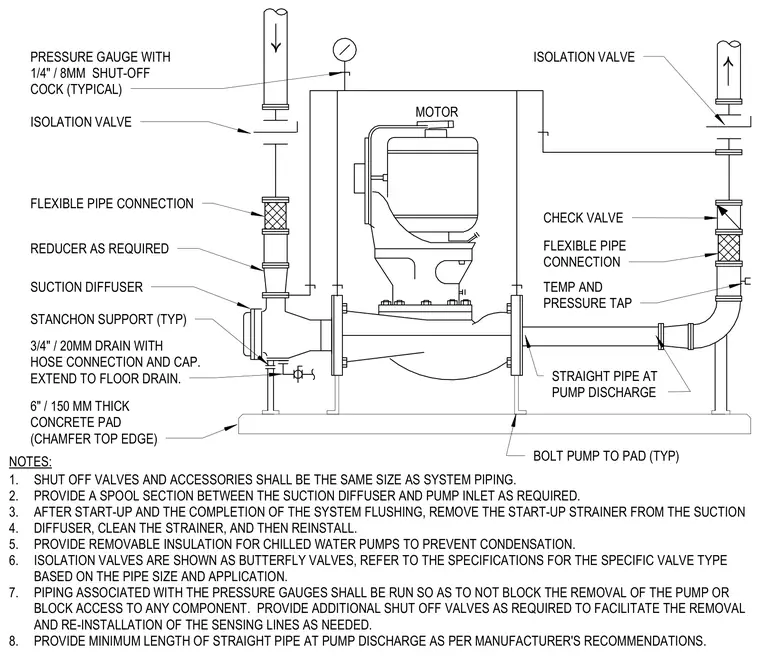

An inline pump is mounted on a six-inch thick concrete pad with a chamfered top edge and secured with anchor bolts at the pump base and stanchon supports. The suction side features a suction diffuser, optional reducer, flexible pipe connection, isolation valve, and a pressure gauge with a one-quarter-inch shut-off cock. A three-quarter-inch drain with a hose connection and cap extends to the floor drain from the suction assembly. The discharge side incorporates a straight pipe section, temperature and pressure tap, flexible pipe connection, check valve, and isolation valve. System notes mandate matching valve sizes to piping, spool sections as required, strainer maintenance after flushing, removable insulation for chilled water applications, and proper pipe alignment to maintain component accessibility.
