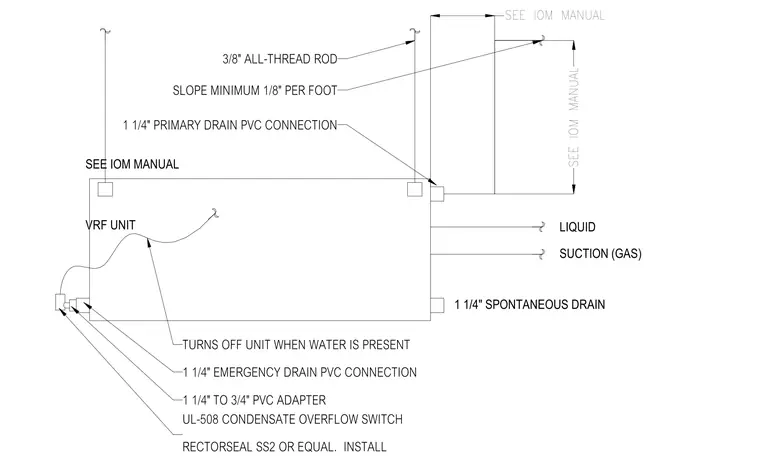

A variable refrigerant flow unit is suspended overhead using 3/8-inch all-thread rods. The unit features a 1 1/4-inch primary drain PVC connection requiring a minimum slope of 1/8-inch per foot. An emergency drain PVC connection utilizes a 1 1/4-inch to 3/4-inch PVC adapter tied to a UL-508 listed condensate overflow switch, specifically a RectorSeal SS2 or equal, designed to turn off the unit when water is present. Liquid and suction gas refrigerant lines connect to the side of the unit, alongside a 1 1/4-inch spontaneous drain connection. Clearances and additional installation parameters are referenced per the manufacturer's installation, operation, and maintenance manual.
TURNS OFF UNIT WHEN WATER IS PRESENT VRF UNIT 1 1/4" EMERGENCY DRAIN PVC CONNECTION 1 1/4" TO 3/4" PVC ADAPTER UL-508 CONDENSATE OVERFLOW SWITCH RECTORSEAL SS2 OR EQUAL. INSTALL 1 1/4" PRIMARY DRAIN PVC CONNECTION SLOPE MINIMUM 1/8" PER FOOT SEE IOM MANUAL SEE IOM MANUAL SEE IOM MANUAL LIQUID SUCTION (GAS) 3/8" ALL-THREAD ROD 1 1/4" SPONTANEOUS DRAIN
