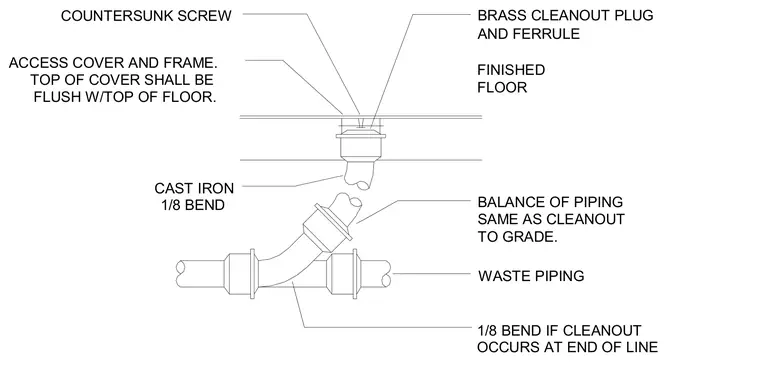

A brass cleanout plug and ferrule connect into a cast iron waste piping system featuring an access cover and frame. Countersunk screws secure the access cover, positioned flush with the finished floor surface. A cast iron one-eighth bend occurs at the end of the line, with the balance of piping continuing to grade.
COUNTERSUNK SCREW AND FERRULE BRASS CLEANOUT PLUG OCCURS AT END OF LINE 1/8 BEND IF CLEANOUT 1/8 BEND CAST IRON WASTE PIPING TO GRADE. SAME AS CLEANOUT BALANCE OF PIPING FLOOR FINISHED FLUSH W/TOP OF FLOOR. TOP OF COVER SHALL BE ACCESS COVER AND FRAME.
