Round ductwork is supported by hanging straps and stabilized with seismic sway bracing using Type 1 or Type 2 Wedgy attachments per SMACNA standards. Lower attachments feature a single Wedgy connector secured per SMACNA spacing and seismic guidelines.

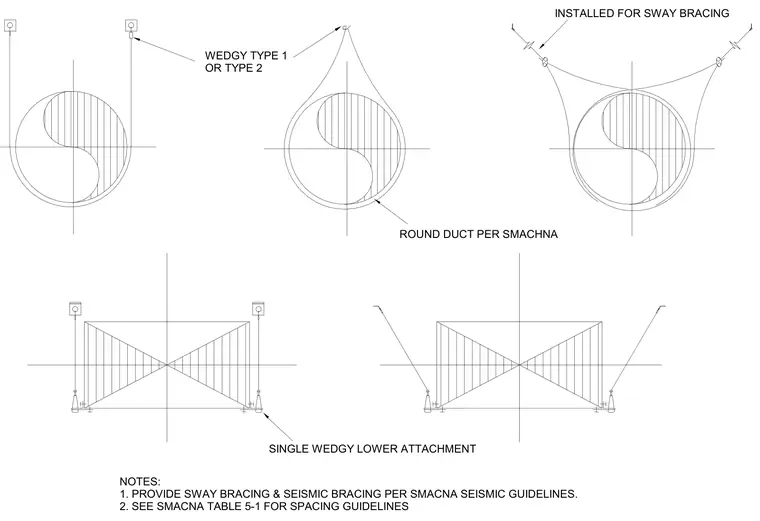

WEDGY TYPE 1 OR TYPE 2 INSTALLED FOR SWAY BRACING ROUND DUCT PER SMACHNA SINGLE WEDGY LOWER ATTACHMENT NOTES: 1. PROVIDE SWAY BRACING & SEISMIC BRACING PER SMACNA SEISMIC GUIDELINES. 2. SEE SMACNA TABLE 5-1 FOR SPACING GUIDELINES
