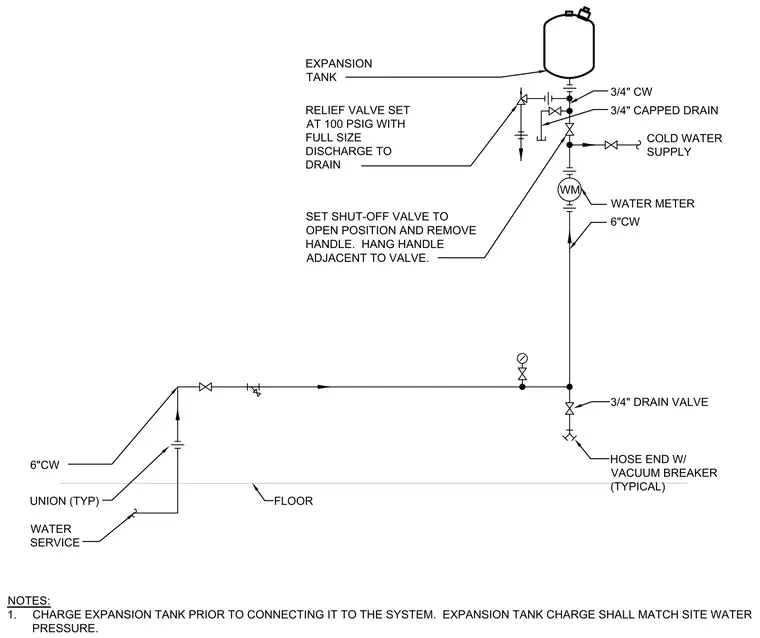

The domestic water service enters through a six-inch cold water line equipped with a typical union above the floor. A water meter measures the incoming flow, branching into a three-quarter-inch cold water supply and a three-quarter-inch capped drain. An expansion tank ties into the system alongside a relief valve set at one hundred psig with a full-size discharge to the drain. Shut-off valves are installed with handles removed and hung adjacent per drawing instructions. A floor hose end with a vacuum breaker and a three-quarter-inch drain valve are provided for maintenance.
WATER SERVICE UNION (TYP) COLD WATER SUPPLY FLOOR HOSE END W/ VACUUM BREAKER (TYPICAL) 3/4" DRAIN VALVE RELIEF VALVE SET AT 100 PSIG WITH FULL SIZE DISCHARGE TO DRAIN EXPANSION TANK 6"CW WM 6"CW SET SHUT-OFF VALVE TO OPEN POSITION AND REMOVE HANDLE. HANG HANDLE ADJACENT TO VALVE. 3/4" CW 3/4" CAPPED DRAIN WATER METER NOTES: 1. CHARGE EXPANSION TANK PRIOR TO CONNECTING IT TO THE SYSTEM. EXPANSION TANK CHARGE SHALL MATCH SITE WATER PRESSURE.
