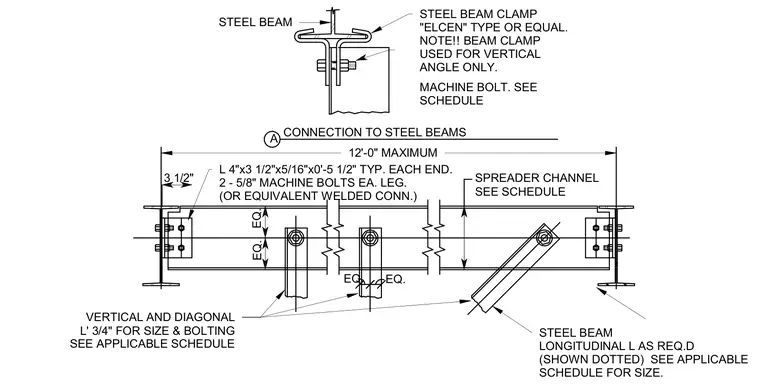

Suspended mechanical support assembly utilizing a spreader channel connected to overhead steel beams with Elcen-type beam clamps restricted to vertical angle use only. A four-inch by three-and-a-half-inch by five-sixteenths-inch angle measuring five and a half inches long is secured at each end using two five-eighths-inch machine bolts per leg or an equivalent welded connection. Vertical and diagonal angles are sized per the applicable schedule with a twelve-foot maximum spacing. Longitudinal angles are also provided as required per the schedule.
STEEL BEAM STEEL BEAM CLAMP "ELCEN" TYPE OR EQUAL. NOTE!! BEAM CLAMP USED FOR VERTICAL ANGLE ONLY. MACHINE BOLT. SEE SCHEDULE SPREADER CHANNEL SEE SCHEDULE EQ. EQ. 3 1/2" L 4"x3 1/2"x5/16"x0'-5 1/2" TYP. EACH END. 2 - 5/8" MACHINE BOLTS EA. LEG. (OR EQUIVALENT WELDED CONN.) 12'-0" MAXIMUM VERTICAL AND DIAGONAL L' 3/4" FOR SIZE & BOLTING SEE APPLICABLE SCHEDULE EQ. EQ. STEEL BEAM LONGITUDINAL L AS REQ.D (SHOWN DOTTED) SEE APPLICABLE SCHEDULE FOR SIZE. CONNECTION TO STEEL BEAMS A
