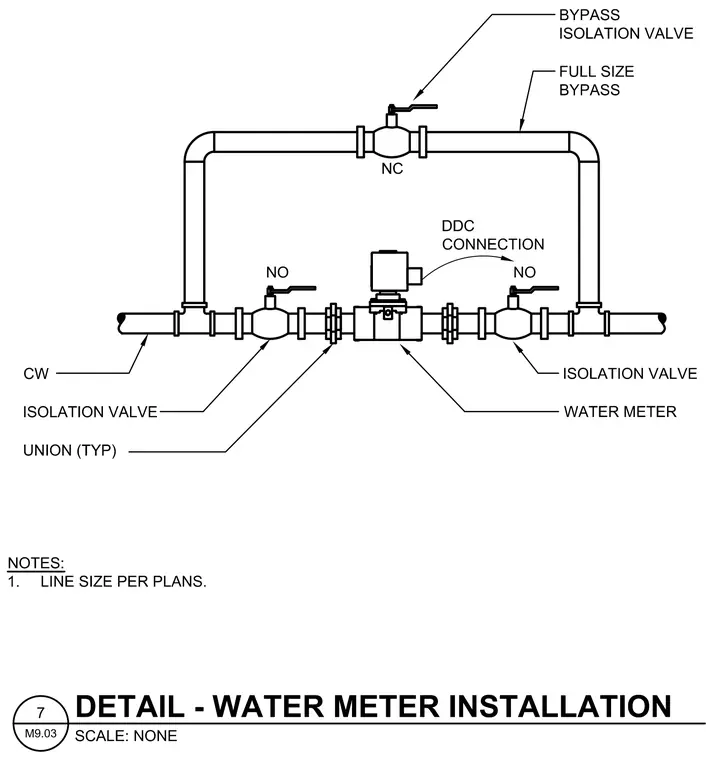

This chilled water piping assembly incorporates a central water meter flanked by unions and normally open isolation valves for maintenance access. A direct digital control connection interfaces with the water meter body. A full size bypass line bridges the main run around the meter assembly, controlled by a normally closed bypass isolation valve. Line sizes are sized per plans.
