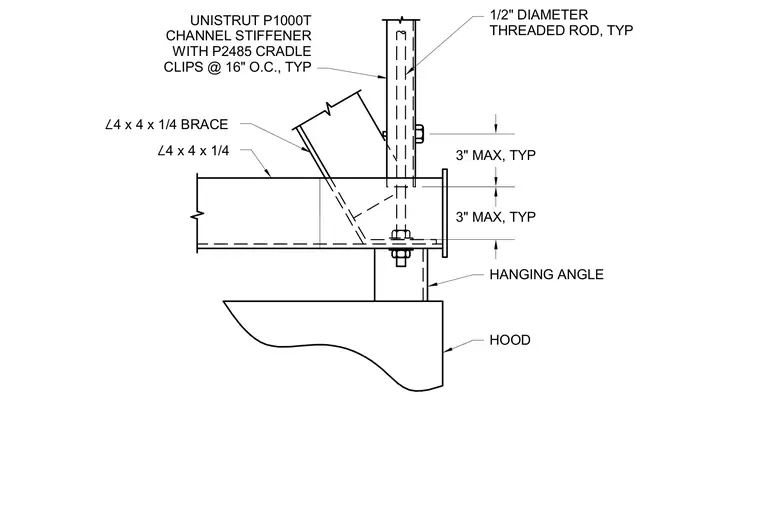

The exhaust hood is suspended from above using a 1/2-inch diameter threaded rod and a hanging angle measuring 4 x 4 x 1/4 inches with a 3-inch maximum spacing typical. A Unistrut P1000T channel stiffener with P2485 cradle clips is installed at 16 inches on center typical. An angle brace measuring 4 x 4 x 1/4 inches provides lateral support to the hood assembly.
∠ 4 x 4 x 1/4 BRACE HOOD 1/2" DIAMETER THREADED ROD, TYP HANGING ANGLE ∠ 4 x 4 x 1/4 3" MAX, TYP UNISTRUT P1000T CHANNEL STIFFENER WITH P2485 CRADLE CLIPS @ 16" O.C., TYP 3" MAX, TYP
