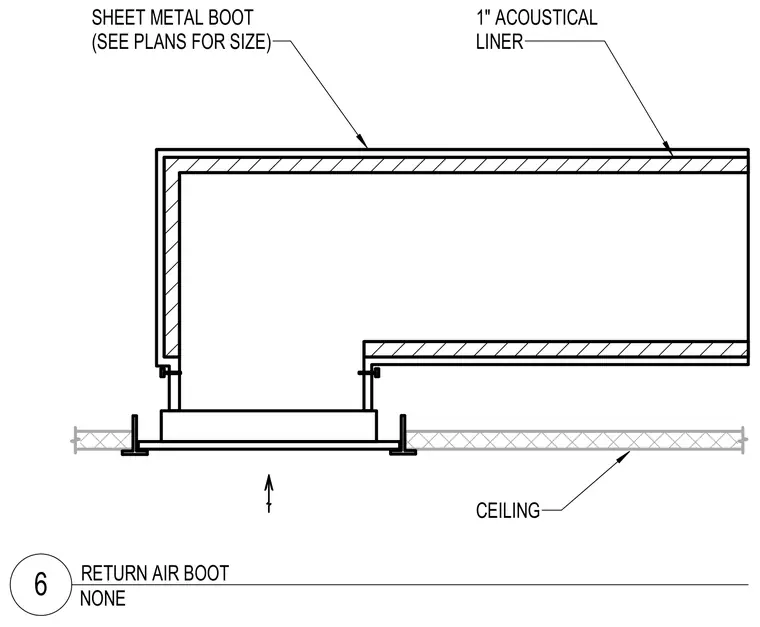

A sheet metal return air boot is sized per the mechanical plans and lined internally with one inch of acoustical liner. The boot transitions air into the space through a suspended ceiling system.
SHEET METAL BOOT (SEE PLANS FOR SIZE) 1" ACOUSTICAL LINER CEILING NONE 6 RETURN AIR BOOT
