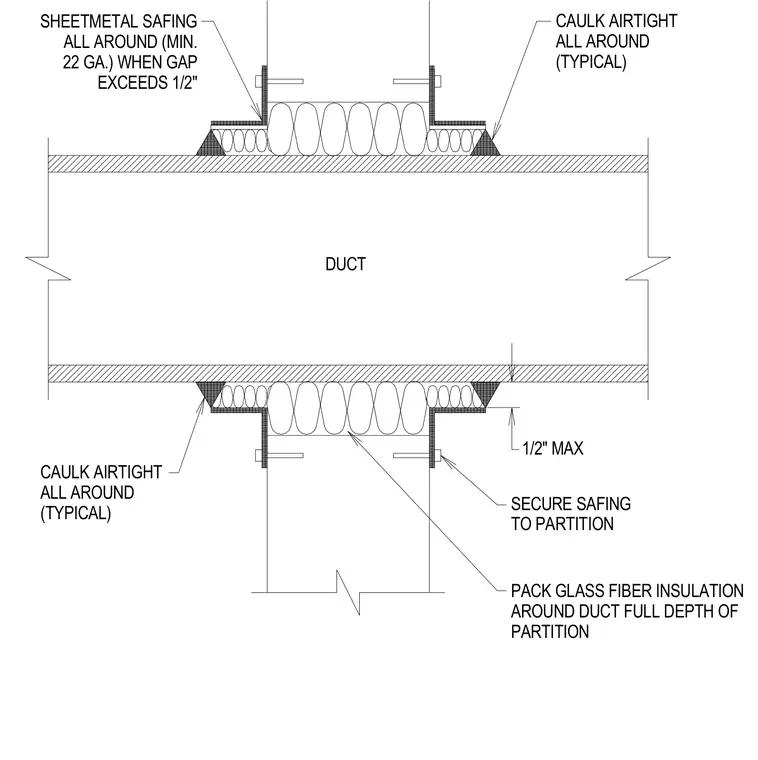

A duct penetrates a partition leaving a gap packed with glass fiber insulation through the full depth of the partition. Sheetmetal safing of minimum twenty-two gauge is secured to the partition around the duct when the gap exceeds one-half inch. Airtight caulk is applied all around the penetration with a maximum one-half inch tolerance.
EXCEEDS 1/2" 22 GA.) WHEN GAP ALL AROUND (MIN. SHEETMETAL SAFING DUCT ALL AROUND (TYPICAL) CAULK AIRTIGHT 1/2" MAX TO PARTITION SECURE SAFING PARTITION AROUND DUCT FULL DEPTH OF PACK GLASS FIBER INSULATION CAULK AIRTIGHT ALL AROUND (TYPICAL)
