Mechanical · M-N87G2

Flexible Duct and Diffuser Connection with Strap Hanger

Materials

Metal (misc.)

Elements

Ceilings

Connections

Bolted Connection

About this detail

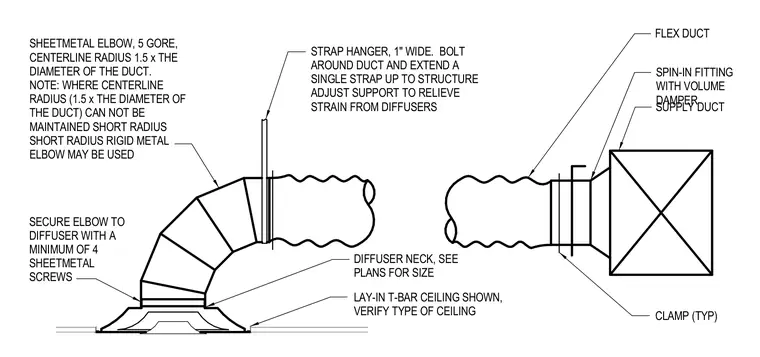

A five-gore sheetmetal elbow connects to a diffuser neck sized per plans, secured with a minimum of four sheetmetal screws at the ceiling level. A one-inch wide strap hanger bolts around the duct and extends up to the structure, adjusted to relieve strain from the diffusers. A flex duct connects to the supply duct via a spin-in fitting equipped with a volume damper and typical clamps. A lay-in T-bar ceiling is shown with the ceiling type to be verified on site.
