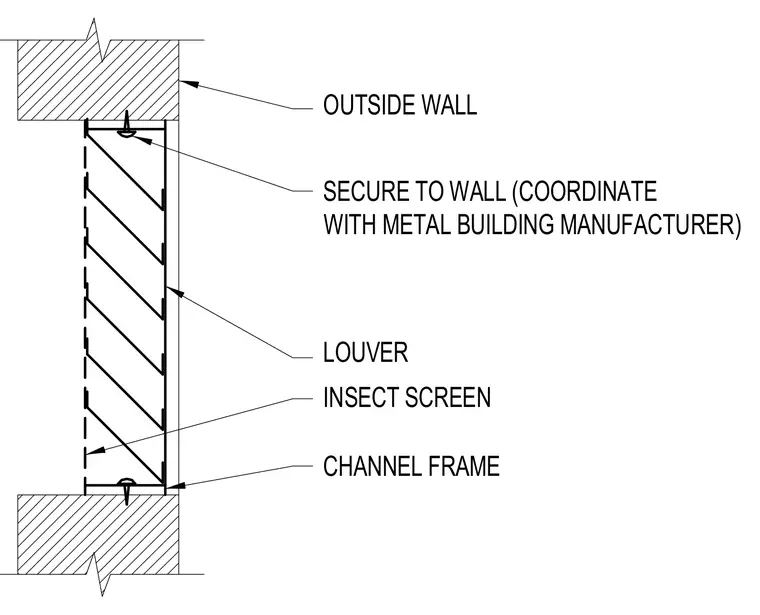

The louver frame is secured directly to the outside wall opening. An insect screen is positioned behind the louver blades within the channel frame. Installation requires coordination with the metal building manufacturer.
SECURE TO WALL (COORDINATE LOUVER OUTSIDE WALL INSECT SCREEN CHANNEL FRAME WITH METAL BUILDING MANUFACTURER)
