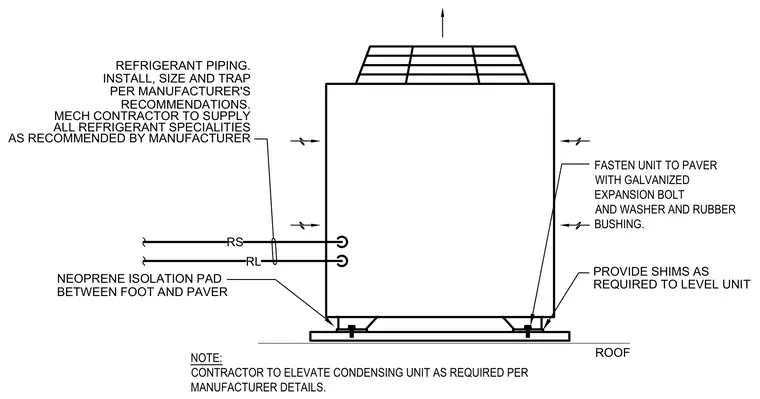

A roof-mounted condensing unit rests on neoprene isolation pads placed between the unit foot and the paver. The unit is fastened to the paver using galvanized expansion bolts, washers, and rubber bushings, with shims provided as required to level the assembly. Refrigerant piping including suction and liquid lines connects to the unit with specialties and traps installed per manufacturer recommendations.
ROOF REQUIRED TO LEVEL UNIT PROVIDE SHIMS AS INSTALL, SIZE AND TRAP PER MANUFACTURER'S REFRIGERANT PIPING. RECOMMENDATIONS. BETWEEN FOOT AND PAVER NEOPRENE ISOLATION PAD RL RS FASTEN UNIT TO PAVER WITH GALVANIZED EXPANSION BOLT AND WASHER AND RUBBER BUSHING. MECH CONTRACTOR TO SUPPLY ALL REFRIGERANT SPECIALITIES AS RECOMMENDED BY MANUFACTURER NOTE: CONTRACTOR TO ELEVATE CONDENSING UNIT AS REQUIRED PER MANUFACTURER DETAILS.
