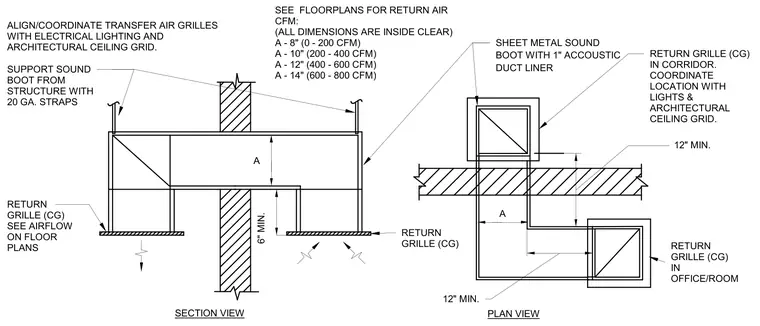

A sheet metal sound boot with one-inch acoustic duct liner connects return grilles across partitions and ceilings. The assembly is supported from the overhead structure using twenty gauge straps spaced with a minimum twelve inch clearance. Return air grilles are coordinated with electrical lighting and architectural ceiling grids. Sizing is determined by airflow requirements ranging from eight inches for zero to two hundred cubic feet per minute up to fourteen inches for six hundred to eight hundred cubic feet per minute.
SECTION VIEW PLAN VIEW SHEET METAL SOUND BOOT WITH 1" ACCOUSTIC DUCT LINER SUPPORT SOUND BOOT FROM STRUCTURE WITH 20 GA. STRAPS 12" MIN. 12" MIN. 6" MIN. ALIGN/COORDINATE TRANSFER AIR GRILLES WITH ELECTRICAL LIGHTING AND ARCHITECTURAL CEILING GRID. RETURN GRILLE (CG) SEE AIRFLOW ON FLOOR PLANS RETURN GRILLE (CG) IN OFFICE/ROOM RETURN GRILLE (CG) RETURN GRILLE (CG) IN CORRIDOR. COORDINATE LOCATION WITH LIGHTS & ARCHITECTURAL CEILING GRID. SEE FLOORPLANS FOR RETURN AIR CFM: (ALL DIMENSIONS ARE INSIDE CLEAR) A - 8" (0 - 200 CFM) A - 10" (200 - 400 CFM) A - 12" (400 - 600 CFM) A - 14" (600 - 800 CFM) A A
