Mechanical · M-MV9HN

Condensate Horizontal Pipe Support Detail

Materials

Elements

About this detail

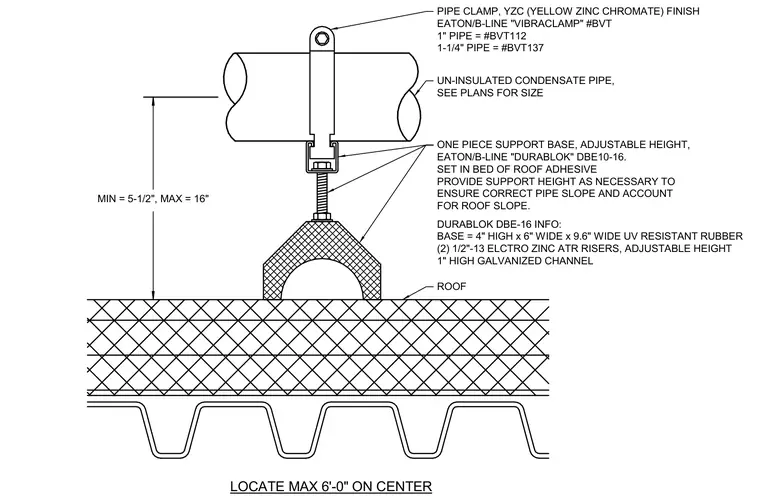

An uninsulated condensate pipe sits within an Eaton B-Line Vibraclamp pipe clamp featuring a yellow zinc chromate finish, secured to an adjustable-height one-piece support base. The support base utilizes an Eaton B-Line Durablok DBE10-16 with a UV-resistant rubber base measuring 4 inches high by 6 inches wide by 9.6 inches wide, set in a bed of roof adhesive. Two 1/2 inch-13 electro-zinc threaded rod risers and a 1 inch high galvanized channel provide adjustable height ranging from a minimum of 5-1/2 inches to a maximum of 16 inches clear of the roof surface. The support height is adjusted as necessary to ensure correct pipe slope and account for roof slope, with supports located at a maximum spacing of 6 feet-0 inches on center.
