Mechanical · M-MTHTB

Air Handling Unit Assembly AHU-200B

About this detail

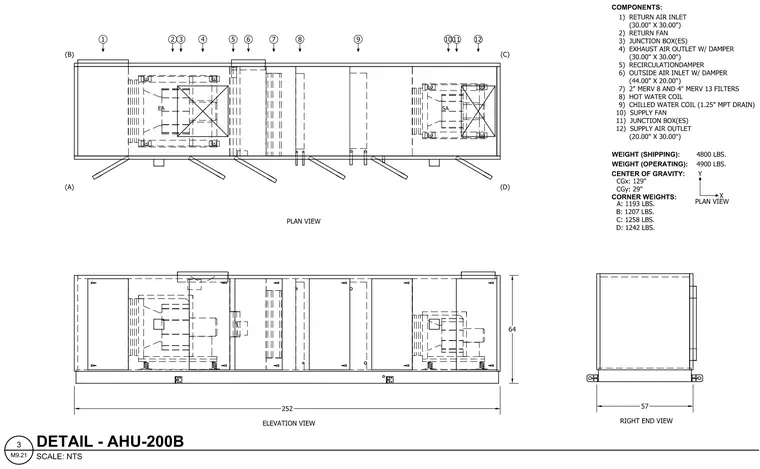

Air handling unit AHU-200B measures two hundred fifty-two inches in length, fifty-seven inches in width, and sixty-four inches in height, with plan view, elevation view, and right end view. The internal component layout includes a return air inlet, return fan, junction boxes, exhaust air outlet with damper, recirculation damper, outside air inlet with damper, MERV filters, hot water coil, chilled water coil with drain, and supply fan with supply air outlet. Shipping weight is four thousand eight hundred pounds, and operating weight is four thousand nine hundred pounds with specified corner weights and center of gravity coordinates.
