An automatic air vent is mounted to a twenty millimeter by one hundred millimeter high nipple connected to the top of water piping. A twenty millimeter gate valve is installed below the air vent for isolation. A ten millimeter copper tubing drain extends from the top of the air vent. Automatic air vents are installed at high points of the piping system and at changes in direction where venting of air is required. The automatic air vent drain is piped to the nearest floor drain or other indicated location.

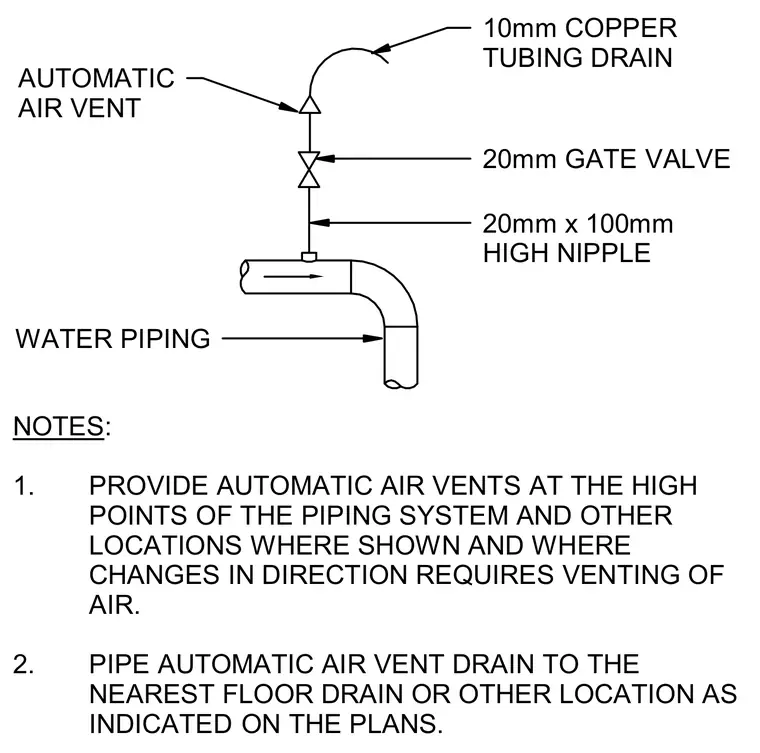

WATER PIPING 20mm x 100mm HIGH NIPPLE 20mm GATE VALVE 10mm COPPER TUBING DRAIN AUTOMATIC AIR VENT NOTES: 1. PROVIDE AUTOMATIC AIR VENTS AT THE HIGH POINTS OF THE PIPING SYSTEM AND OTHER LOCATIONS WHERE SHOWN AND WHERE CHANGES IN DIRECTION REQUIRES VENTING OF AIR. 2. PIPE AUTOMATIC AIR VENT DRAIN TO THE NEAREST FLOOR DRAIN OR OTHER LOCATION AS INDICATED ON THE PLANS.
