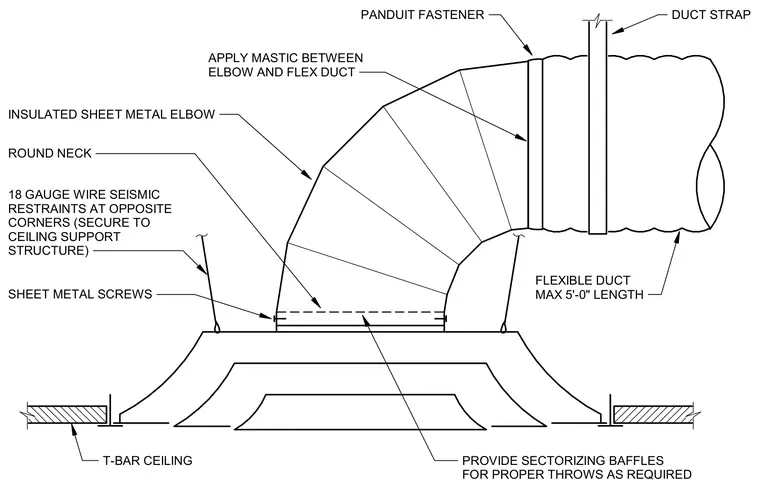

An insulated sheet metal elbow with a round neck connects to the ceiling diffuser using sheet metal screws, with mastic applied between the elbow and the flexible duct. The flexible duct is secured using a Panduit fastener and supported by a duct strap, maintaining a maximum length of five feet. Eighteen-gauge wire seismic restraints are anchored at opposite corners and secured to the ceiling support structure. Sectorizing baffles are provided within the assembly for proper air throws as required.
T-BAR CEILING SHEET METAL SCREWS ROUND NECK FLEXIBLE DUCT MAX 5'-0" LENGTH PANDUIT FASTENER INSULATED SHEET METAL ELBOW APPLY MASTIC BETWEEN ELBOW AND FLEX DUCT DUCT STRAP 18 GAUGE WIRE SEISMIC RESTRAINTS AT OPPOSITE CORNERS (SECURE TO CEILING SUPPORT STRUCTURE) PROVIDE SECTORIZING BAFFLES FOR PROPER THROWS AS REQUIRED
