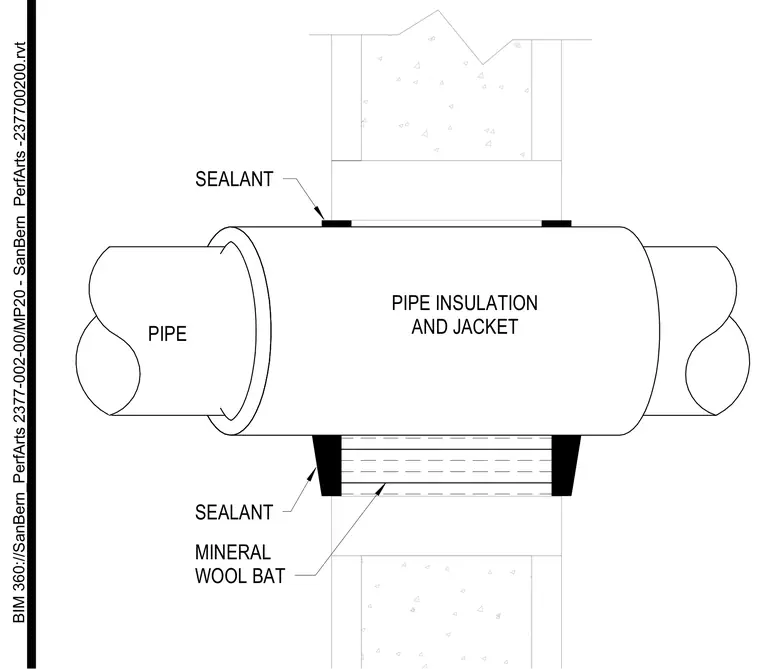

An insulated pipe with protective jacket passes through an opening in a concrete wall. The annular space between the insulated pipe and the wall opening is packed with mineral wool batts. The perimeter joints on both faces of the wall are finished with a bead of sealant.
MINERAL WOOL BAT SEALANT PIPE PIPE INSULATION AND JACKET SEALANT BIM 360://SanBern_PerfArts 2377-002-00/MP20 - SanBern_PerfArts -237700200.rvt
