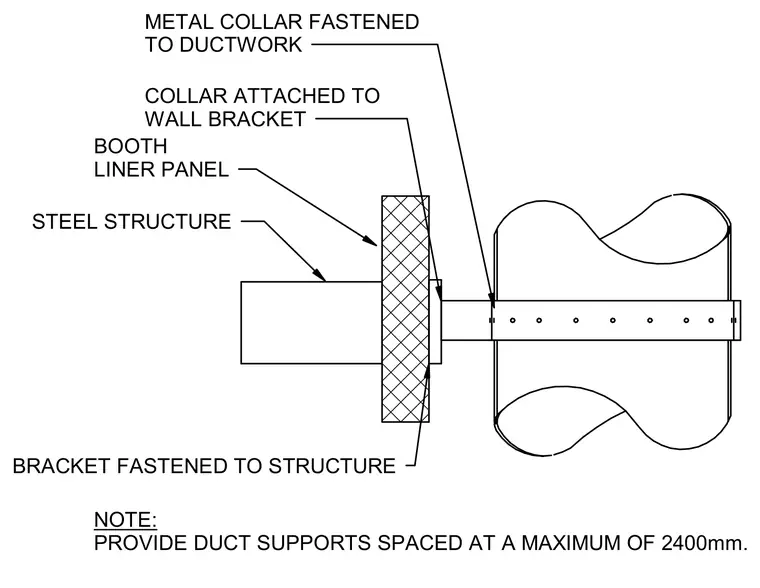

A metal collar is fastened directly to the ductwork and attached to a wall bracket, which spans past a booth liner panel to a steel structure. The bracket is securely fastened to the underlying structural member. Duct supports must be spaced at a maximum interval of 2400 millimeters along the vertical run.
NOTE: PROVIDE DUCT SUPPORTS SPACED AT A MAXIMUM OF 2400mm. METAL COLLAR FASTENED TO DUCTWORK COLLAR ATTACHED TO WALL BRACKET STEEL STRUCTURE BRACKET FASTENED TO STRUCTURE BOOTH LINER PANEL
