Mechanical · M-MQG3B

Direct Buried Gate Valve with Valve Box and Concrete Collar

Materials

Concrete Metal (misc.)

Elements

Stairs

Connections

Bolted Connection

About this detail

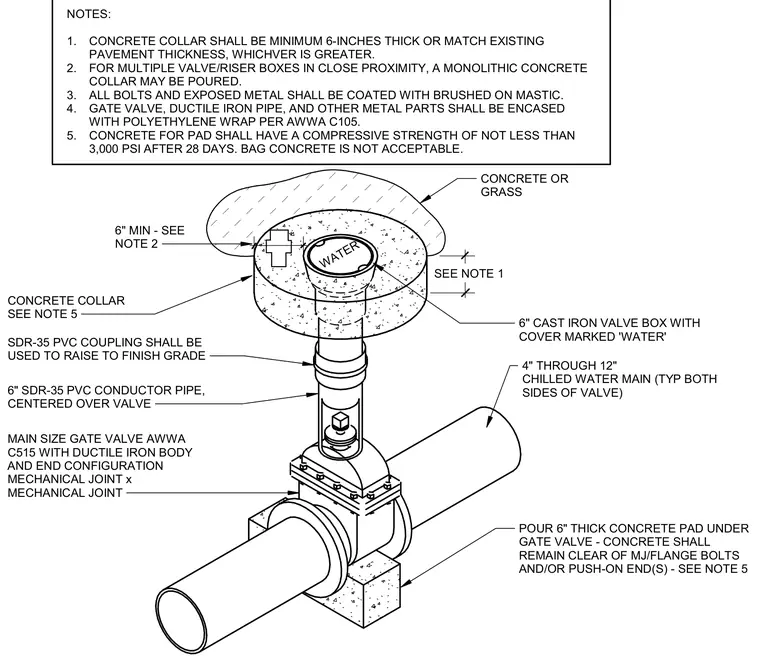

A direct-buried gate valve assembly connects to a chilled water main ranging from 4 inches to 12 inches in size. The assembly features an AWWA C515 gate valve with a ductile iron body and mechanical joint ends, supported underneath by a 6-inch thick concrete pad that remains clear of all mechanical joint and flange bolts. A 6-inch SDR-35 PVC conductor pipe centers over the valve and extends to finish grade using an SDR-35 PVC coupling. At the surface, a 6-inch cast iron valve box with a cover marked 'WATER' sets within a concrete collar that is a minimum of 6 inches thick or matches existing pavement thickness. All bolts and exposed metal are coated with brushed-on mastic, and metal parts are encased in polyethylene wrap per AWWA C105.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
