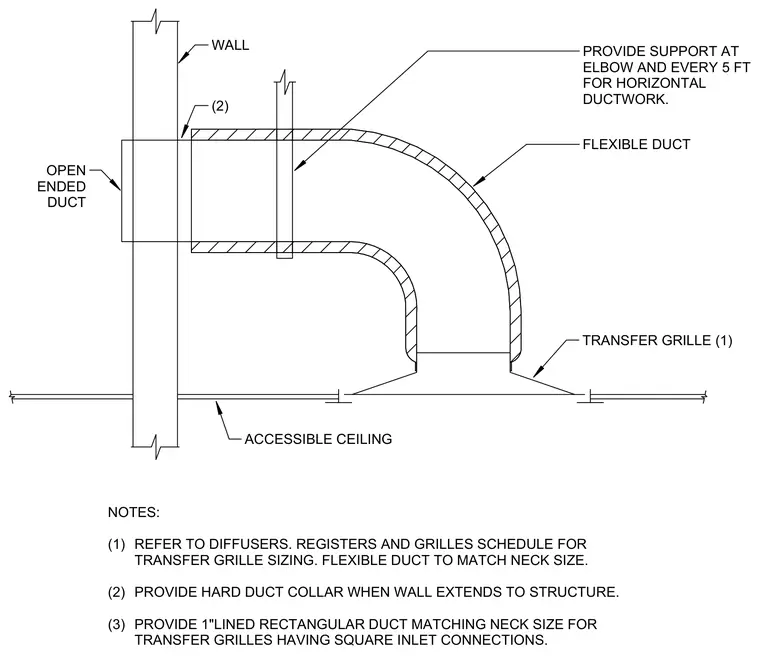

A flexible duct routes through a wall opening fitted with a hard duct collar, terminating with an open-ended duct on one side and a transfer grille at an accessible ceiling on the other. Support is provided at the duct elbow and every five feet for horizontal runs. A one-inch lined rectangular duct matching the neck size is used for transfer grilles having square inlet connections.
FLEXIBLE DUCT TRANSFER GRILLE (1) PROVIDE SUPPORT AT ELBOW AND EVERY 5 FT FOR HORIZONTAL DUCTWORK. ACCESSIBLE CEILING NOTES: (1) REFER TO DIFFUSERS. REGISTERS AND GRILLES SCHEDULE FOR TRANSFER GRILLE SIZING. FLEXIBLE DUCT TO MATCH NECK SIZE. (2) PROVIDE HARD DUCT COLLAR WHEN WALL EXTENDS TO STRUCTURE. (3) PROVIDE 1"LINED RECTANGULAR DUCT MATCHING NECK SIZE FOR TRANSFER GRILLES HAVING SQUARE INLET CONNECTIONS. OPEN ENDED DUCT (2) WALL
