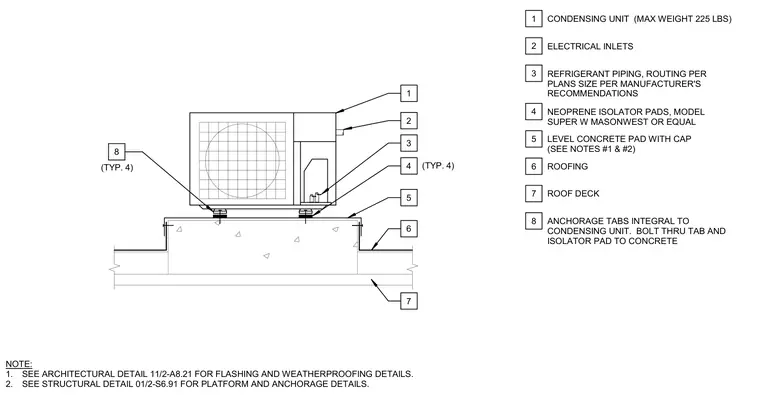

A small condensing unit with a maximum weight of 225 pounds rests on four neoprene isolator pads of model Super W Masonwest or equal. The isolator pads and unit anchorage tabs bolt directly to a level concrete pad with cap, which bears over the roof level and roof deck. Electrical inlets and refrigerant piping are routed per plans and sized per the manufacturer's recommendations. Flashing, weatherproofing, platform, and anchorage details are coordinated per referenced architectural and structural notes.
(TYP. 4) (TYP. 4) 3 4 5 6 7 8 ELECTRICAL INLETS REFRIGERANT PIPING, ROUTING PER PLANS SIZE PER MANUFACTURER'S RECOMMENDATIONS CONDENSING UNIT (MAX WEIGHT 225 LBS) NEOPRENE ISOLATOR PADS, MODEL SUPER W MASONWEST OR EQUAL ROOFING LEVEL CONCRETE PAD WITH CAP (SEE NOTES #1 & #2) NOTE: 1. SEE ARCHITECTURAL DETAIL 11/2-A8.21 FOR FLASHING AND WEATHERPROOFING DETAILS. 2. SEE STRUCTURAL DETAIL 01/2-S6.91 FOR PLATFORM AND ANCHORAGE DETAILS. ROOF DECK ANCHORAGE TABS INTEGRAL TO CONDENSING UNIT. BOLT THRU TAB AND ISOLATOR PAD TO CONCRETE 1 2 3 4 5 6 7 8 1 2
