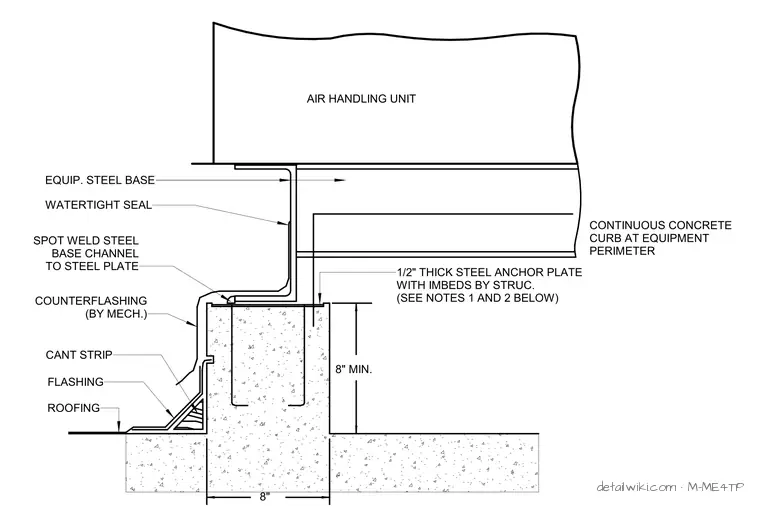

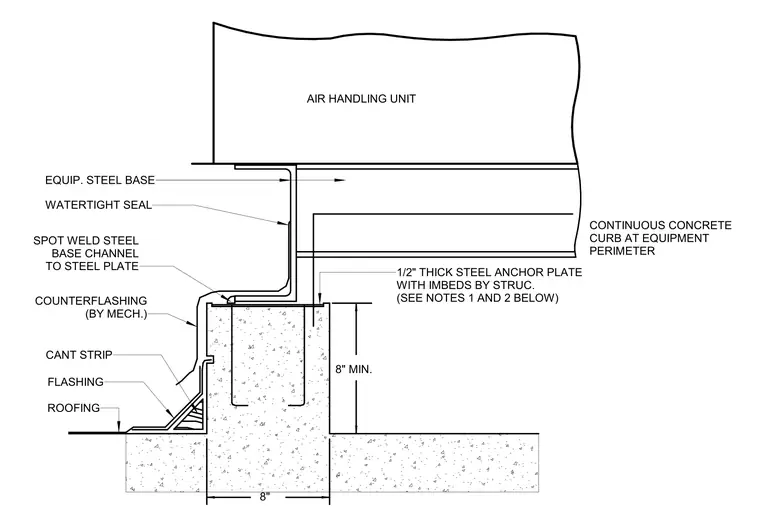

M-ME4TP — Rooftop Air Handler Mounting

Mechanical · M-ME4TP

Rooftop Air Handler Mounting

Units: imperial
Sheet: M-500
Discipline: Mechanical

Materials

Elements

Roofs Waterproofing / Flashing Site / Paving Anchors / Embeds Connections / Plates

Connections

Welded Connection

Text on the drawing

SPOT WELD STEEL BASE CHANNEL TO STEEL PLATE ROOFING WATERTIGHT SEAL FLASHING EQUIP. STEEL BASE COUNTERFLASHING (BY MECH.) CANT STRIP CONTINUOUS CONCRETE CURB AT EQUIPMENT PERIMETER 1/2" THICK STEEL ANCHOR PLATE WITH IMBEDS BY STRUC. (SEE NOTES 1 AND 2 BELOW) 8" 8" MIN. AIR HANDLING UNIT
