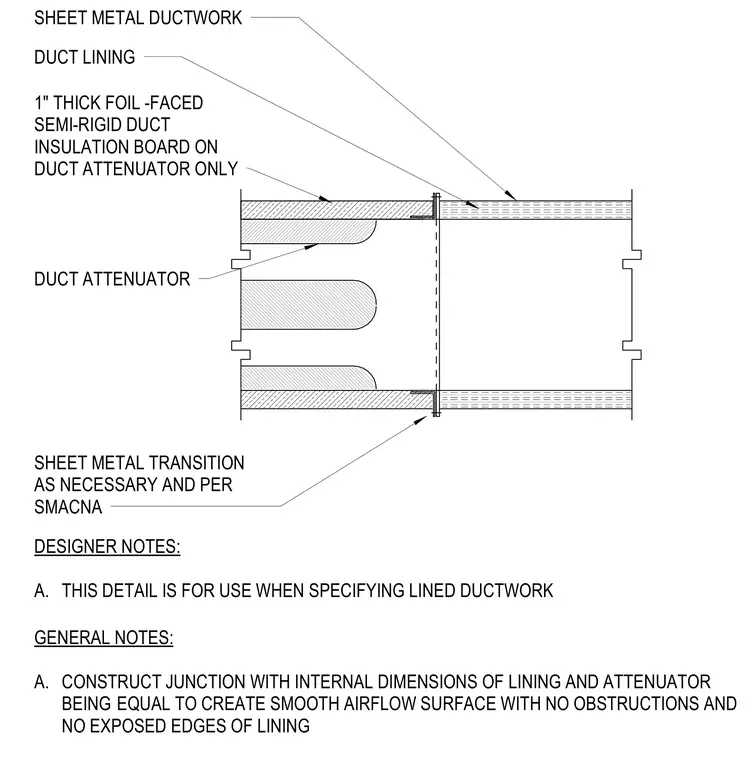

Sheet metal ductwork connects to a duct attenuator with a sheet metal transition constructed as necessary and per SMACNA standards. The interior features duct lining paired with a 1-inch thick foil-faced semi-rigid duct insulation board applied exclusively to the duct attenuator. The junction is constructed with internal dimensions of the lining and attenuator being equal to create a smooth airflow surface with no obstructions and no exposed edges of lining.
SHEET METAL DUCTWORK DUCT LINING 1" THICK FOIL -FACED SEMI-RIGID DUCT INSULATION BOARD ON DUCT ATTENUATOR ONLY DUCT ATTENUATOR SHEET METAL TRANSITION AS NECESSARY AND PER SMACNA GENERAL NOTES: A. CONSTRUCT JUNCTION WITH INTERNAL DIMENSIONS OF LINING AND ATTENUATOR BEING EQUAL TO CREATE SMOOTH AIRFLOW SURFACE WITH NO OBSTRUCTIONS AND NO EXPOSED EDGES OF LINING DESIGNER NOTES: A. THIS DETAIL IS FOR USE WHEN SPECIFYING LINED DUCTWORK
