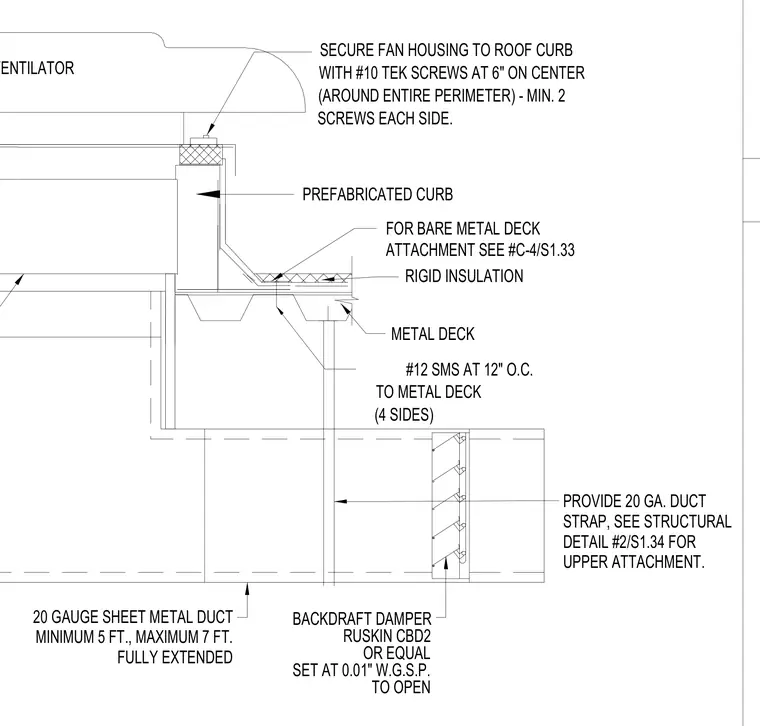

The fan housing is secured to the prefabricated roof curb using number 10 self-tapping screws at 6 inches on center around the entire perimeter with a minimum of two screws on each side. The roof curb bears on rigid insulation over a metal deck, which is attached with number 12 sheet metal screws at 12 inches on center on all four sides. A twenty-gauge sheet metal duct extends between 5 and 7 feet and houses a Ruskin CBD2 backdraft damper or equal set at 0.01 inches water gauge static pressure to open. A twenty-gauge duct strap is provided for the duct, with the upper attachment detailed on structural detail 2/S1.34.
METAL DECK TO METAL DECK #12 SMS AT 12" O.C. RIGID INSULATION (4 SIDES) ATTACHMENT SEE #C-4/S1.33 FOR BARE METAL DECK SECURE FAN HOUSING TO ROOF CURB WITH #10 TEK SCREWS AT 6" ON CENTER (AROUND ENTIRE PERIMETER) - MIN. 2 PREFABRICATED CURB ROOF VENTILATOR SCREWS EACH SIDE. OR EQUAL RUSKIN CBD2 BACKDRAFT DAMPER FULLY EXTENDED MINIMUM 5 FT., MAXIMUM 7 FT. 20 GAUGE SHEET METAL DUCT SET AT 0.01" W.G.S.P. TO OPEN PROVIDE 20 GA. DUCT STRAP, SEE STRUCTURAL DETAIL #2/S1.34 FOR UPPER ATTACHMENT.
