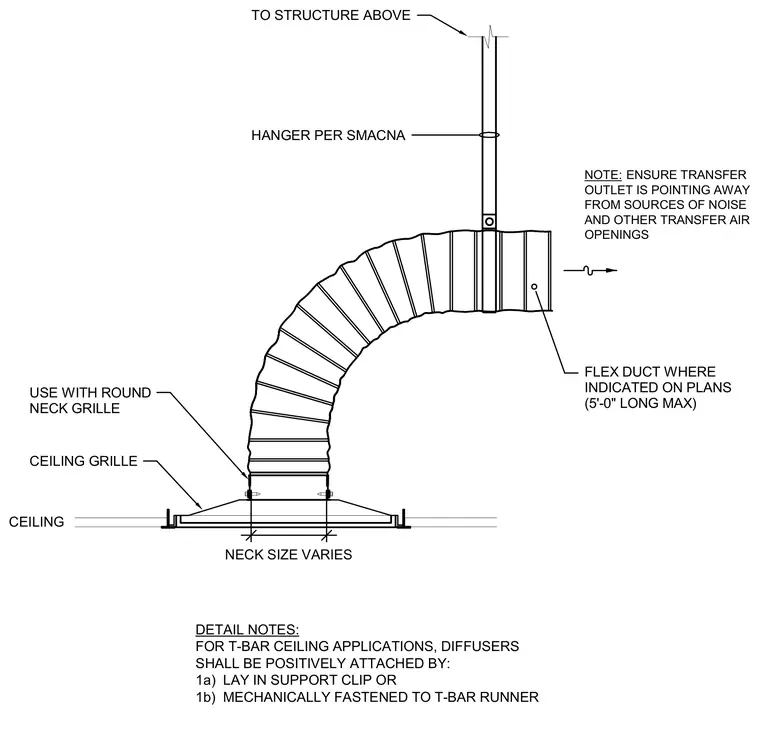

A ceiling transfer grille connects to a flexible duct with a maximum length of five feet, suspended from the structure above by a hanger installed per Sheet Metal and Air Conditioning Contractors' National Association standards. The neck size of the assembly varies based on structural requirements and connects to a round neck ceiling grille. For T-bar ceiling applications, the diffusers are positively attached using either lay-in support clips or mechanical fasteners secured to the T-bar runner. The transfer outlet is positioned away from noise sources and other transfer air openings.
NECK SIZE VARIES TO STRUCTURE ABOVE FLEX DUCT WHERE INDICATED ON PLANS (5'-0" LONG MAX) HANGER PER SMACNA USE WITH ROUND NECK GRILLE CEILING GRILLE NOTE: ENSURE TRANSFER OUTLET IS POINTING AWAY FROM SOURCES OF NOISE AND OTHER TRANSFER AIR OPENINGS DETAIL NOTES: FOR T-BAR CEILING APPLICATIONS, DIFFUSERS SHALL BE POSITIVELY ATTACHED BY: 1a) LAY IN SUPPORT CLIP OR 1b) MECHANICALLY FASTENED TO T-BAR RUNNER CEILING
